Chlorine in PDB 9fm0: Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex

The structure of Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex, PDB code: 9fm0 was solved by J.M.Desveaux, C.Contreras Martel, A.Dessen, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	49.21 / 2.56
Space group	P 1 21 1
Cell size a, b, c (Å), α, β, γ (°)	87.582, 92.308, 105.22, 90, 104.83, 90
R / Rfree (%)	21 / 23.7

The binding sites of Chlorine atom in the Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex (pdb code 9fm0). This binding sites where shown within 5.0 Angstroms radius around Chlorine atom.
In total 4 binding sites of Chlorine where determined in the Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex, PDB code: 9fm0:
Jump to Chlorine binding site number: 1; 2; 3; 4;

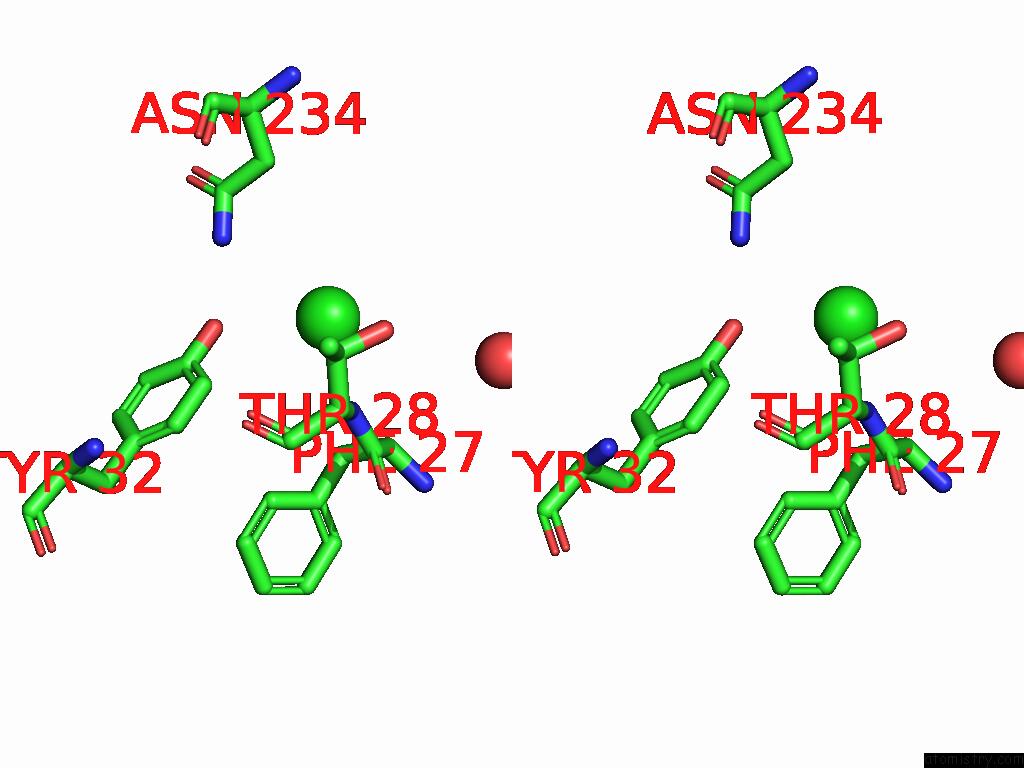

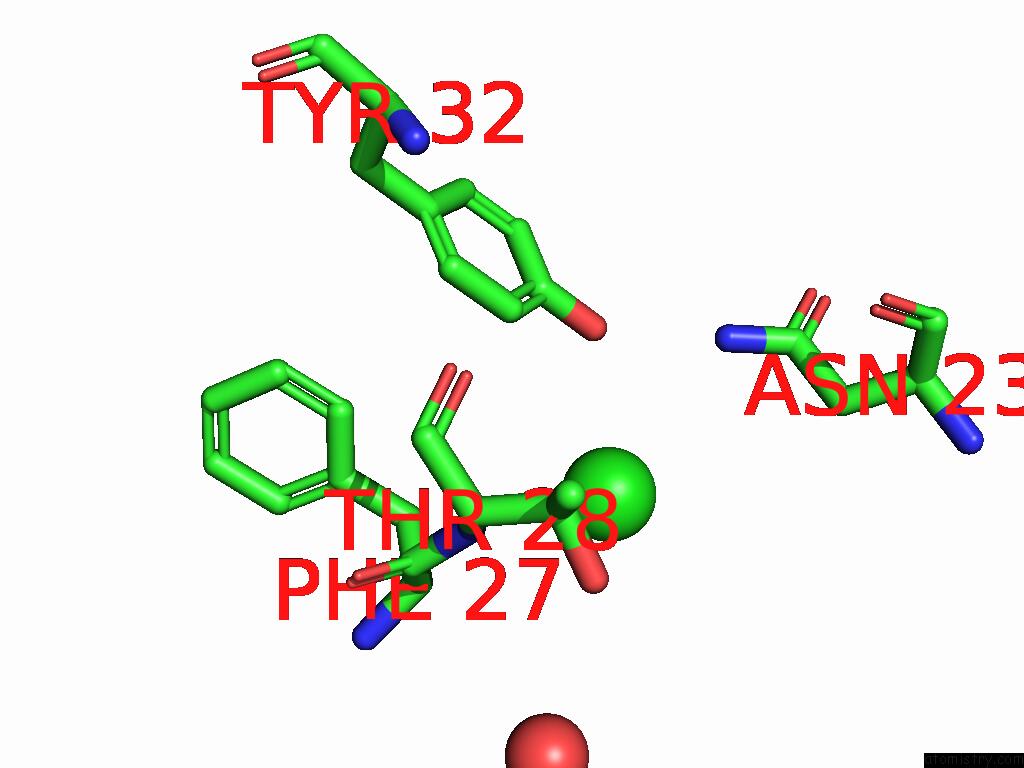

Chlorine binding site 1 out of 4 in the Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 1 of Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex within 5.0Å range: probe atom residue distance (Å) B Occ A:Cl301 b:53.1 occ:1.00 N A:THR28 3.3 39.6 1.0 OH A:TYR32 3.4 49.2 1.0 ND2 E:ASN234 3.7 68.0 1.0 OG1 A:THR28 3.8 39.6 1.0 CA A:PHE27 3.9 39.7 1.0 CB A:PHE27 3.9 39.8 1.0 CE1 A:TYR32 4.0 45.5 1.0 CB A:THR28 4.0 40.2 1.0 C A:PHE27 4.1 39.0 1.0 CZ A:TYR32 4.1 44.3 1.0 CA A:THR28 4.2 39.2 1.0 CG E:ASN234 4.6 66.3 1.0 CB E:ASN234 4.7 65.5 1.0 O A:HOH487 5.0 41.6 1.0

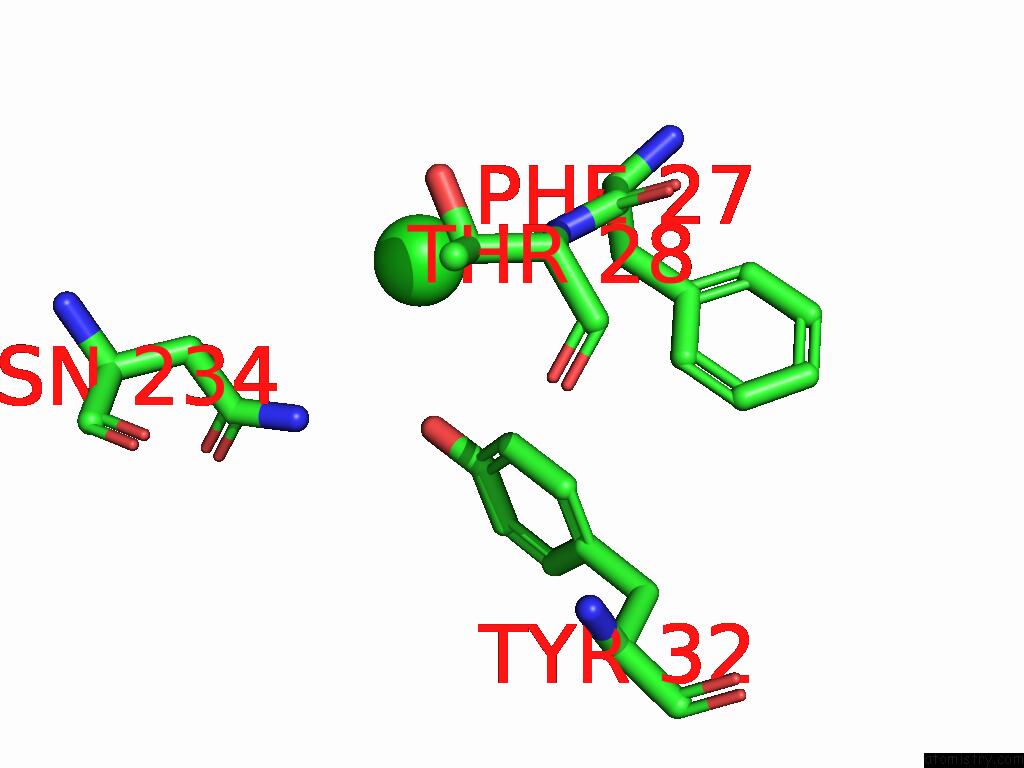

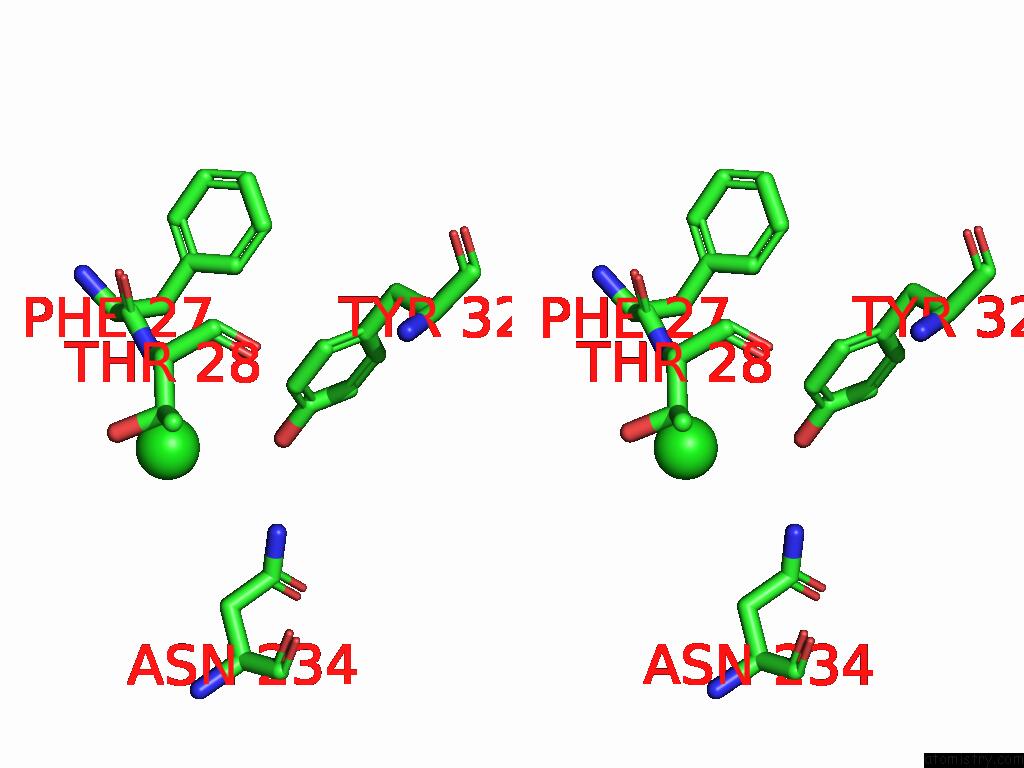

Chlorine binding site 2 out of 4 in the Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 2 of Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex within 5.0Å range: probe atom residue distance (Å) B Occ B:Cl301 b:50.4 occ:1.00 N B:THR28 3.3 38.1 1.0 OH B:TYR32 3.6 38.9 1.0 OG1 B:THR28 3.7 39.1 1.0 CB B:THR28 3.9 39.0 1.0 ND2 F:ASN234 3.9 63.5 1.0 CE1 B:TYR32 4.0 36.3 1.0 CA B:PHE27 4.0 39.2 1.0 CB B:PHE27 4.1 38.7 1.0 C B:PHE27 4.2 38.7 1.0 CA B:THR28 4.2 37.8 1.0 CZ B:TYR32 4.3 35.1 1.0 CG F:ASN234 4.6 66.0 1.0 CB F:ASN234 4.7 66.4 1.0

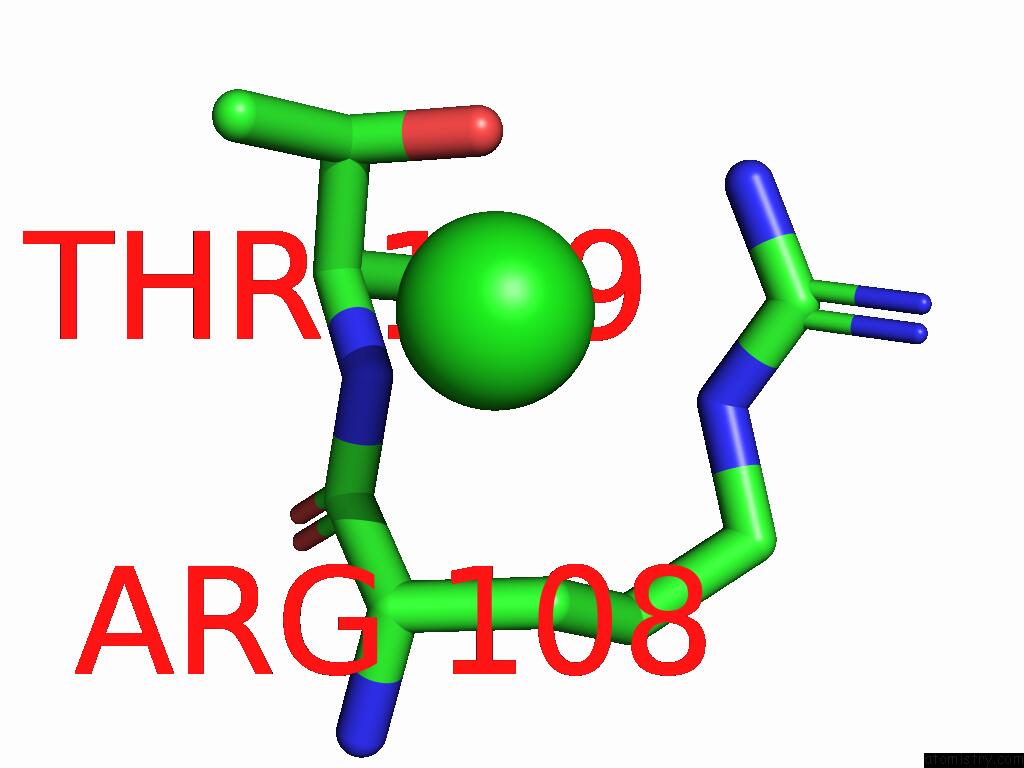

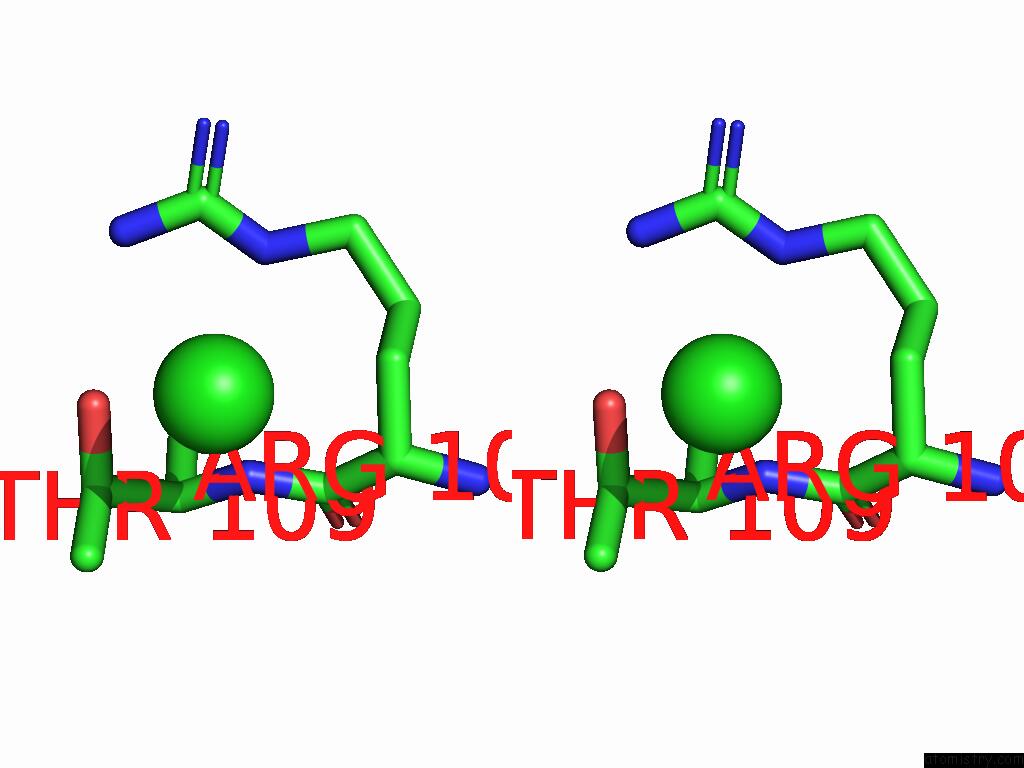

Chlorine binding site 3 out of 4 in the Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 3 of Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex within 5.0Å range: probe atom residue distance (Å) B Occ C:Cl301 b:65.2 occ:1.00 OG1 C:THR109 3.2 42.8 1.0 N C:THR109 3.3 39.4 1.0 CB C:ARG108 3.5 41.8 1.0 CG2 C:THR109 3.7 42.4 1.0 CA C:ARG108 3.8 40.8 1.0 CB C:THR109 3.9 42.7 1.0 C C:ARG108 4.1 39.2 1.0 CA C:THR109 4.2 41.0 1.0 NE C:ARG108 4.4 44.1 1.0 CZ C:ARG108 4.4 45.8 1.0 NH2 C:ARG108 4.5 47.5 1.0 CG C:ARG108 4.7 42.2 1.0 CD C:ARG108 4.8 43.1 1.0 NH1 C:ARG108 4.9 45.8 1.0

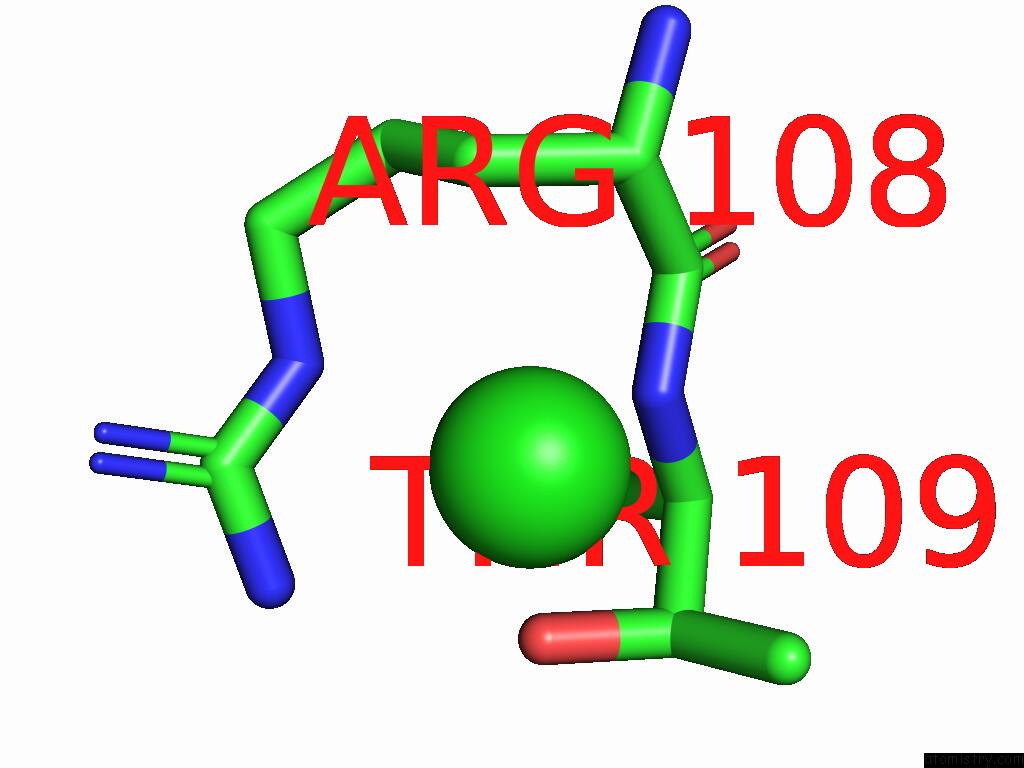

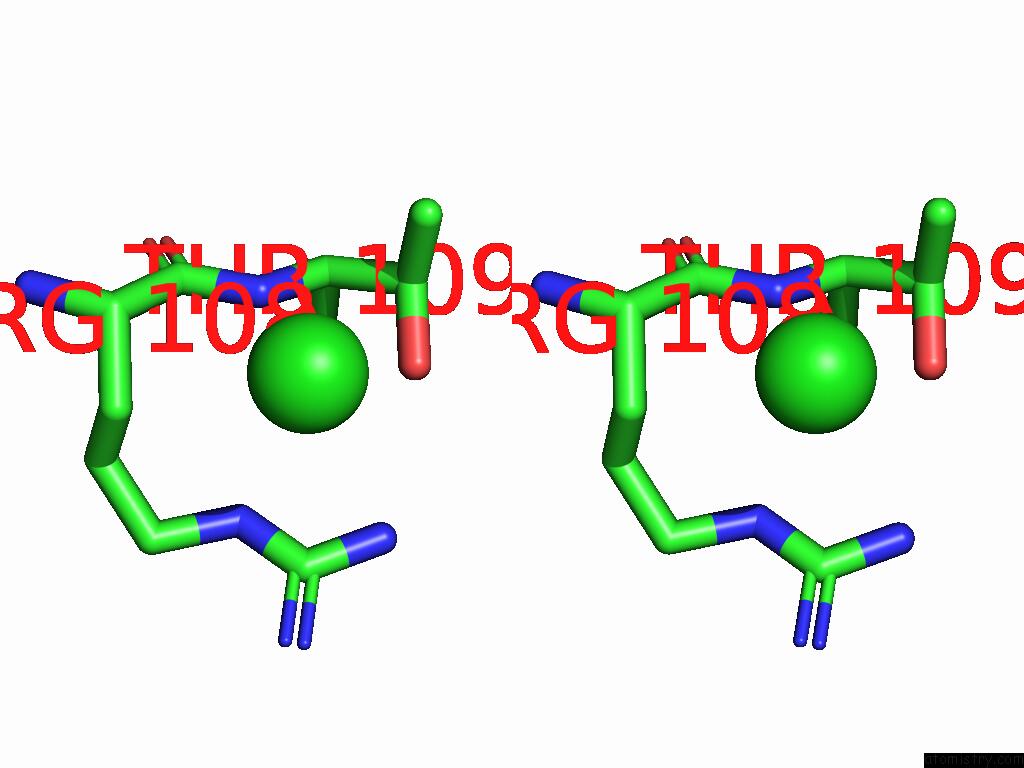

Chlorine binding site 4 out of 4 in the Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 4 of Human Antibody (Fab) and P. Aeruginosa (T3SS) Protein Pcrv-Fragment Complex within 5.0Å range: probe atom residue distance (Å) B Occ D:Cl301 b:65.1 occ:1.00 OG1 D:THR109 3.1 47.9 1.0 N D:THR109 3.3 44.5 1.0 CB D:ARG108 3.6 45.0 1.0 CG2 D:THR109 3.6 47.5 1.0 CB D:THR109 3.8 47.4 1.0 CA D:ARG108 3.8 44.5 1.0 C D:ARG108 4.1 43.9 1.0 CA D:THR109 4.2 45.5 1.0 NE D:ARG108 4.4 46.1 1.0 CZ D:ARG108 4.4 47.9 1.0 NH2 D:ARG108 4.5 49.3 1.0 CG D:ARG108 4.8 44.3 1.0 CD D:ARG108 4.8 45.0 1.0 NH1 D:ARG108 4.9 49.4 1.0

J.M.Desveaux, E.Faudry, C.Contreras-Martel, F.Cretin, S.Dergan-Dylon, A.Amen, I.Bally, V.Tardivy-Casemajor, F.Chenavier, Y.Caspar, I.Attree, A.Dessen, P.Poignard. Human Antibodies That Target the Type III Secretion System of Pseudomonas Aeruginosa Inhibit Translocon Function and Cytotoxicity To Be Published.
