Chlorine in PDB 9lvy: Hexamer Form of Insulin Detemir at Ambient Temperature

The structure of Hexamer Form of Insulin Detemir at Ambient Temperature, PDB code: 9lvy was solved by E.Ayan, I.Bahar, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	19.38 / 2.85
Space group	H 3
Cell size a, b, c (Å), α, β, γ (°)	81.24, 81.24, 40.322, 90, 90, 120
R / Rfree (%)	28.5 / 33.8

The structure of Hexamer Form of Insulin Detemir at Ambient Temperature also contains other interesting chemical elements:

Zinc

(Zn)

2 atoms

The binding sites of Chlorine atom in the Hexamer Form of Insulin Detemir at Ambient Temperature (pdb code 9lvy). This binding sites where shown within 5.0 Angstroms radius around Chlorine atom.
In total 2 binding sites of Chlorine where determined in the Hexamer Form of Insulin Detemir at Ambient Temperature, PDB code: 9lvy:
Jump to Chlorine binding site number: 1; 2;

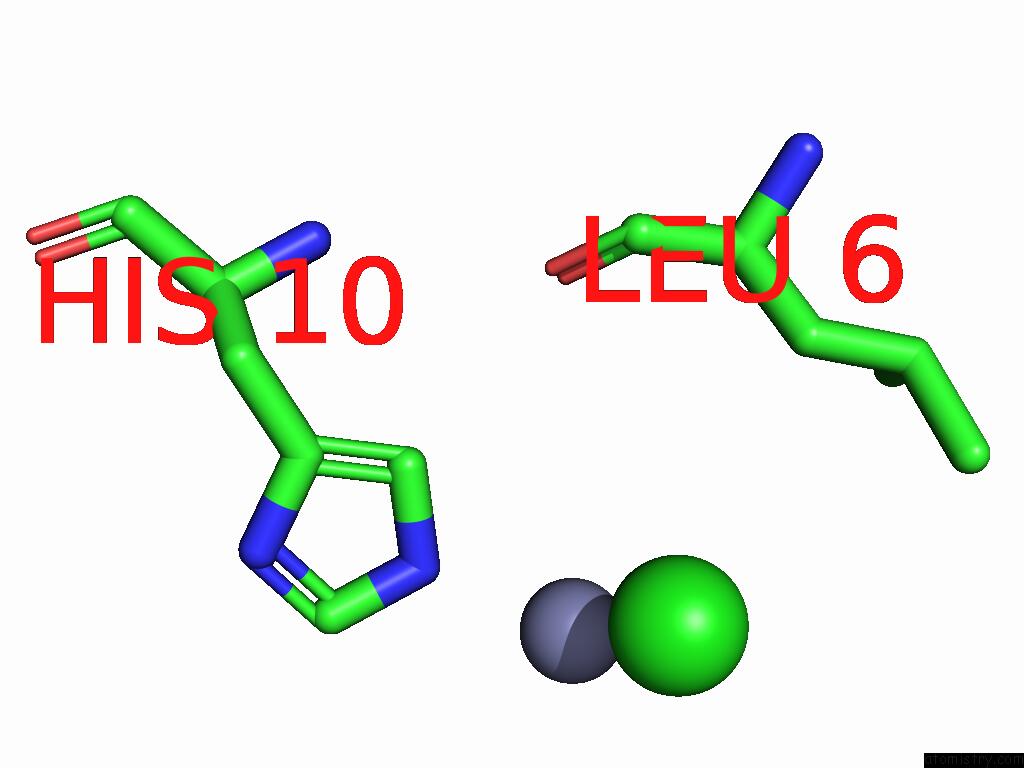

Chlorine binding site 1 out of 2 in the Hexamer Form of Insulin Detemir at Ambient Temperature


Mono view

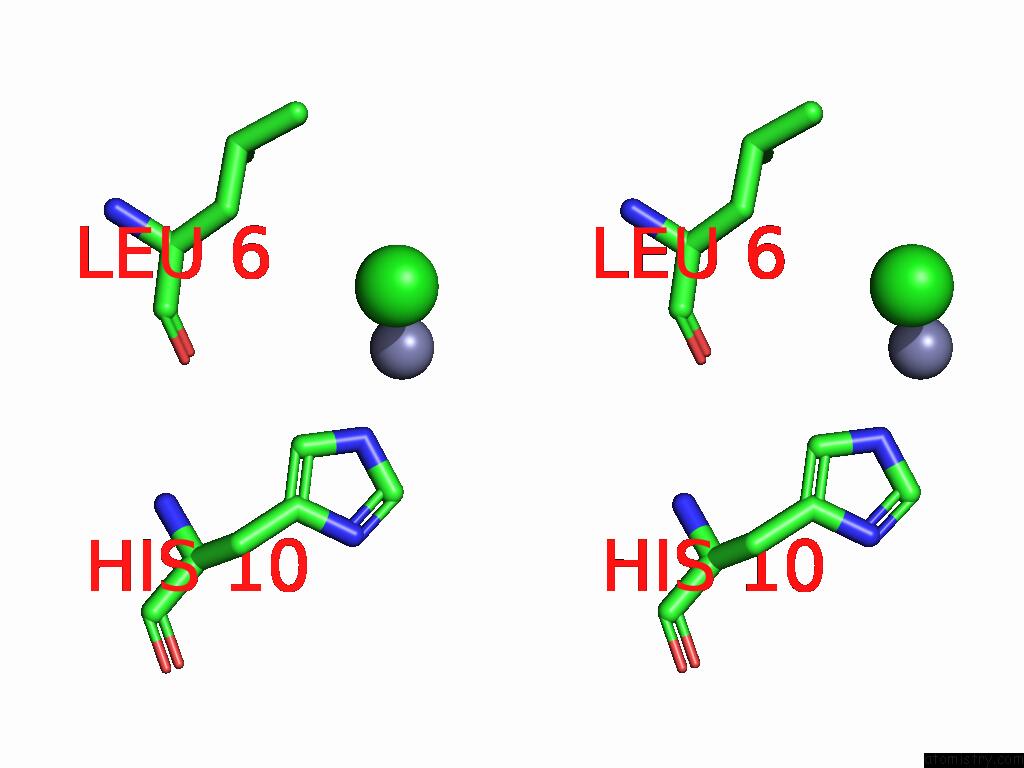

Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 1 of Hexamer Form of Insulin Detemir at Ambient Temperature within 5.0Å range: probe atom residue distance (Å) B Occ B:Cl103 b:27.1 occ:0.36 ZN B:ZN102 2.3 25.3 0.2 NE2 B:HIS10 3.6 28.8 1.0 CB B:LEU6 4.0 50.6 1.0 CD2 B:HIS10 4.1 34.2 1.0 CD1 B:LEU6 4.3 54.7 1.0 CE1 B:HIS10 4.6 30.8 1.0 CG B:LEU6 4.7 55.1 1.0 O B:LEU6 4.8 46.8 1.0 C B:LEU6 5.0 52.0 1.0 CA B:LEU6 5.0 49.1 1.0

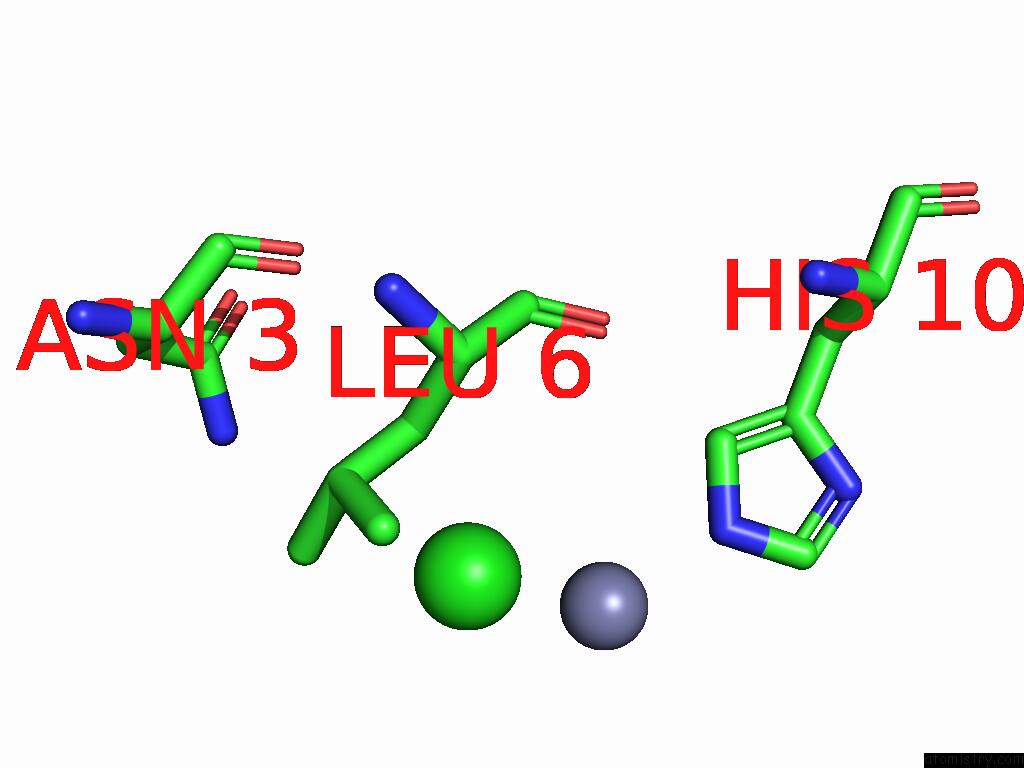

Chlorine binding site 2 out of 2 in the Hexamer Form of Insulin Detemir at Ambient Temperature


Mono view

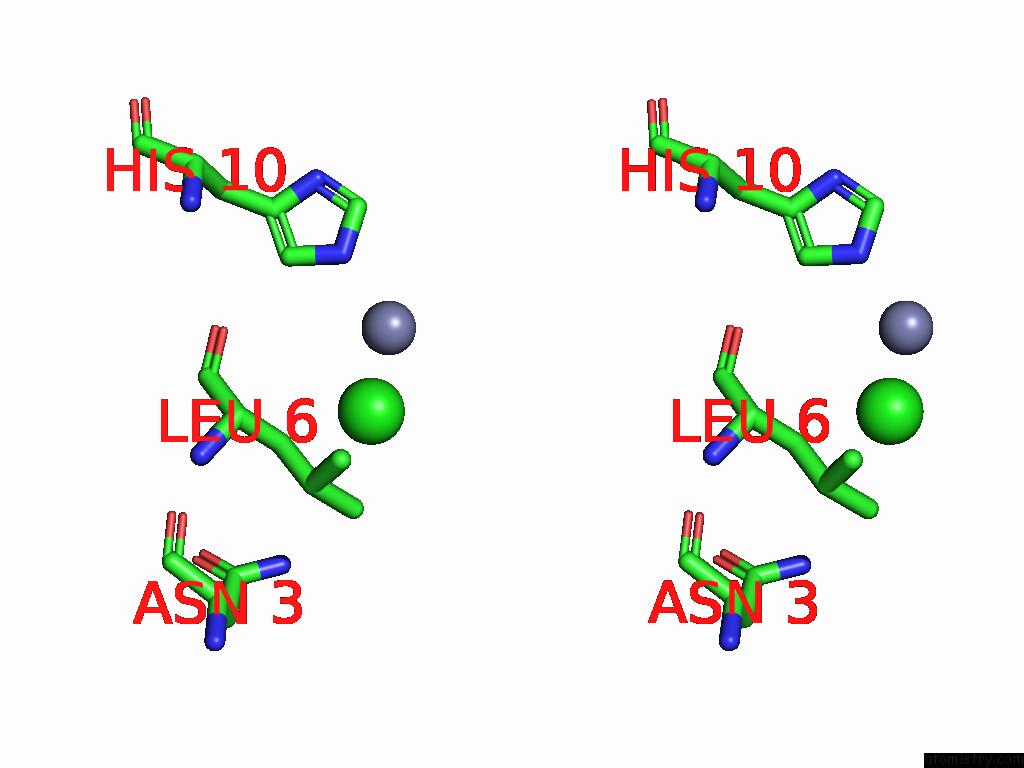

Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 2 of Hexamer Form of Insulin Detemir at Ambient Temperature within 5.0Å range: probe atom residue distance (Å) B Occ D:Cl103 b:49.9 occ:0.09 ZN D:ZN102 2.5 40.7 0.1 CD1 D:LEU6 3.5 65.2 1.0 CB D:LEU6 3.6 62.2 1.0 CG D:LEU6 4.1 64.6 1.0 NE2 D:HIS10 4.4 40.2 1.0 CD2 D:HIS10 4.7 41.3 1.0 CD2 D:LEU6 4.8 53.9 1.0 CA D:LEU6 4.8 65.0 1.0 ND2 D:ASN3 5.0 88.0 0.0 C D:LEU6 5.0 60.0 1.0

E.Ayan, I.Bahar. Hexamer Form of Insulin Detemir at Ambient Temperature To Be Published.
