Chlorine in PDB 9n0i: Crystal Structure of Kable Double Mutant (LYS14PRO, LEU20TRP)

The structure of Crystal Structure of Kable Double Mutant (LYS14PRO, LEU20TRP), PDB code: 9n0i was solved by G.J.Correy, J.S.Fraser, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	48.98 / 2.15
Space group	P 1 21 1
Cell size a, b, c (Å), α, β, γ (°)	52.904, 90.29, 89.572, 90, 100.93, 90
R / Rfree (%)	20 / 26.4

The binding sites of Chlorine atom in the Crystal Structure of Kable Double Mutant (LYS14PRO, LEU20TRP) (pdb code 9n0i). This binding sites where shown within 5.0 Angstroms radius around Chlorine atom.
In total only one binding site of Chlorine was determined in the Crystal Structure of Kable Double Mutant (LYS14PRO, LEU20TRP), PDB code: 9n0i:

Chlorine binding site 1 out of 1 in the Crystal Structure of Kable Double Mutant (LYS14PRO, LEU20TRP)

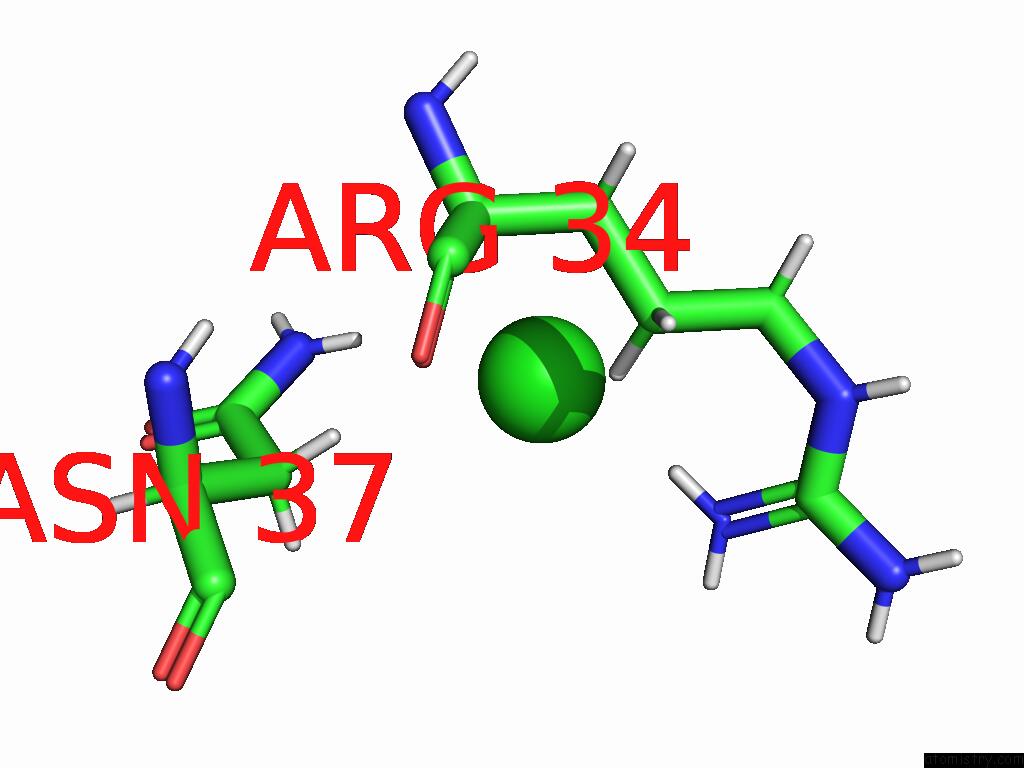

Mono view

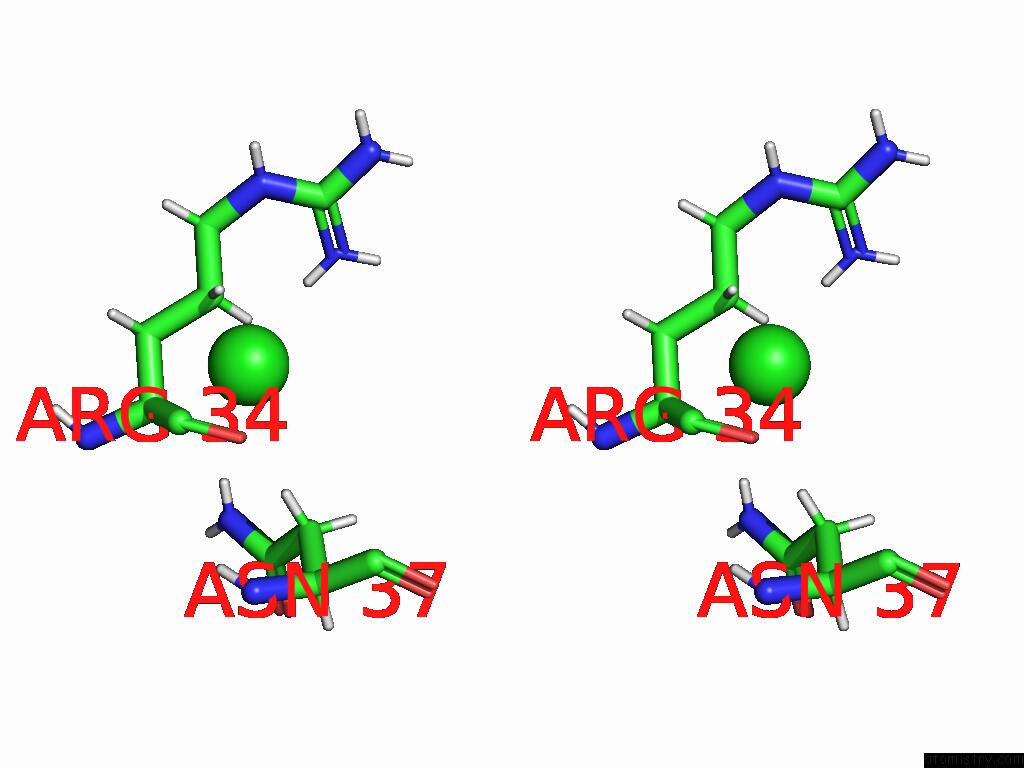

Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 1 of Crystal Structure of Kable Double Mutant (LYS14PRO, LEU20TRP) within 5.0Å range: probe atom residue distance (Å) B Occ D:Cl201 b:42.4 occ:1.00 HD22 D:ASN37 2.7 78.9 1.0 HH11 D:ARG34 2.7 57.6 1.0 HG3 D:ARG34 2.9 45.0 1.0 HB2 D:ARG34 3.1 47.0 1.0 HA D:ARG34 3.2 54.5 1.0 HD2 D:ARG34 3.3 51.8 1.0 ND2 D:ASN37 3.4 65.7 1.0 NH1 D:ARG34 3.5 48.0 1.0 CG D:ARG34 3.5 37.5 1.0 CB D:ARG34 3.6 39.2 1.0 HD21 D:ASN37 3.8 78.9 1.0 HH12 D:ARG34 3.8 57.6 1.0 HB2 D:ASN37 3.8 57.0 1.0 CA D:ARG34 3.9 45.4 1.0 CD D:ARG34 3.9 43.2 1.0 CG D:ASN37 4.3 65.4 1.0 CB D:ASN37 4.4 47.5 1.0 HB3 D:ASN37 4.4 57.0 1.0 HG2 D:ARG34 4.4 45.0 1.0 CZ D:ARG34 4.5 45.2 1.0 HB3 D:ARG34 4.6 47.0 1.0 HD3 D:ARG34 4.7 51.8 1.0 NE D:ARG34 4.7 38.7 1.0 N D:ARG34 4.8 36.1 1.0 C D:ARG34 5.0 39.1 1.0 O D:ARG34 5.0 36.7 1.0

G.J.Correy, J.S.Fraser. De Novo Designed Kable Protein To Be Published.
