Chlorine in PDB 9o68: Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound)

All present enzymatic activity of Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound):
6.1.1.2;

The structure of Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound), PDB code: 9o68 was solved by Seattle Structural Genomics Center For Infectious Disease, Seattlestructural Genomics Center For Infectious Disease (Ssgcid), with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	48.88 / 2.15
Space group	P 1 21 1
Cell size a, b, c (Å), α, β, γ (°)	49.054, 120.798, 55.83, 90, 94.87, 90
R / Rfree (%)	18 / 22.3

The binding sites of Chlorine atom in the Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound) (pdb code 9o68). This binding sites where shown within 5.0 Angstroms radius around Chlorine atom.
In total 3 binding sites of Chlorine where determined in the Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound), PDB code: 9o68:
Jump to Chlorine binding site number: 1; 2; 3;

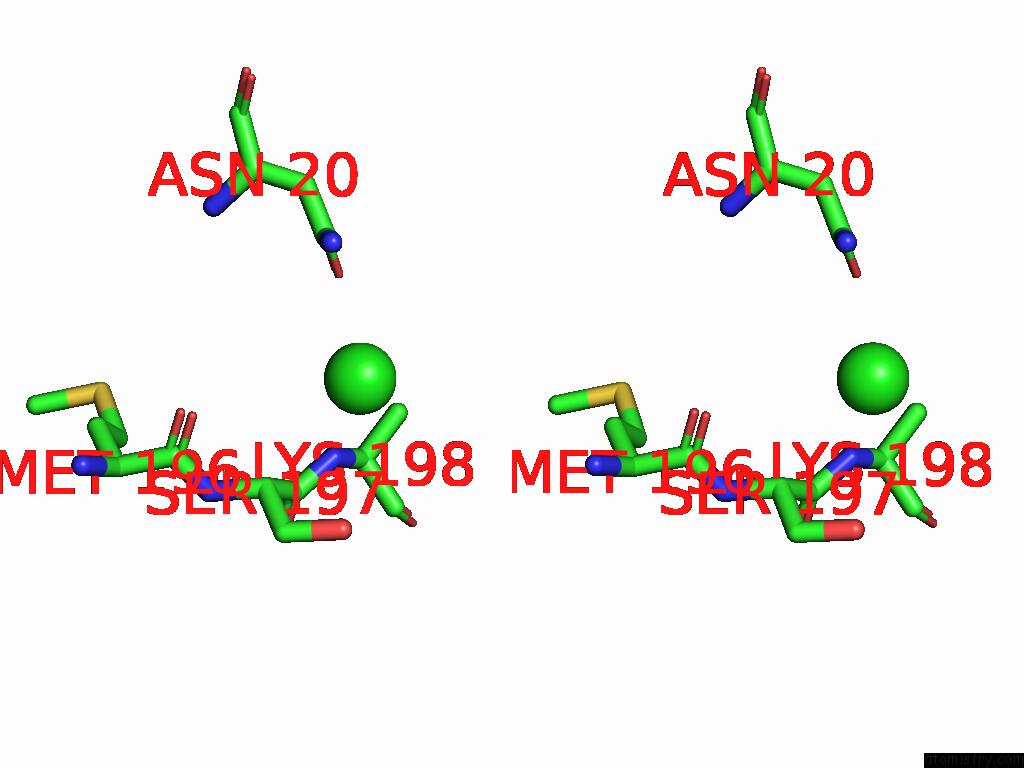

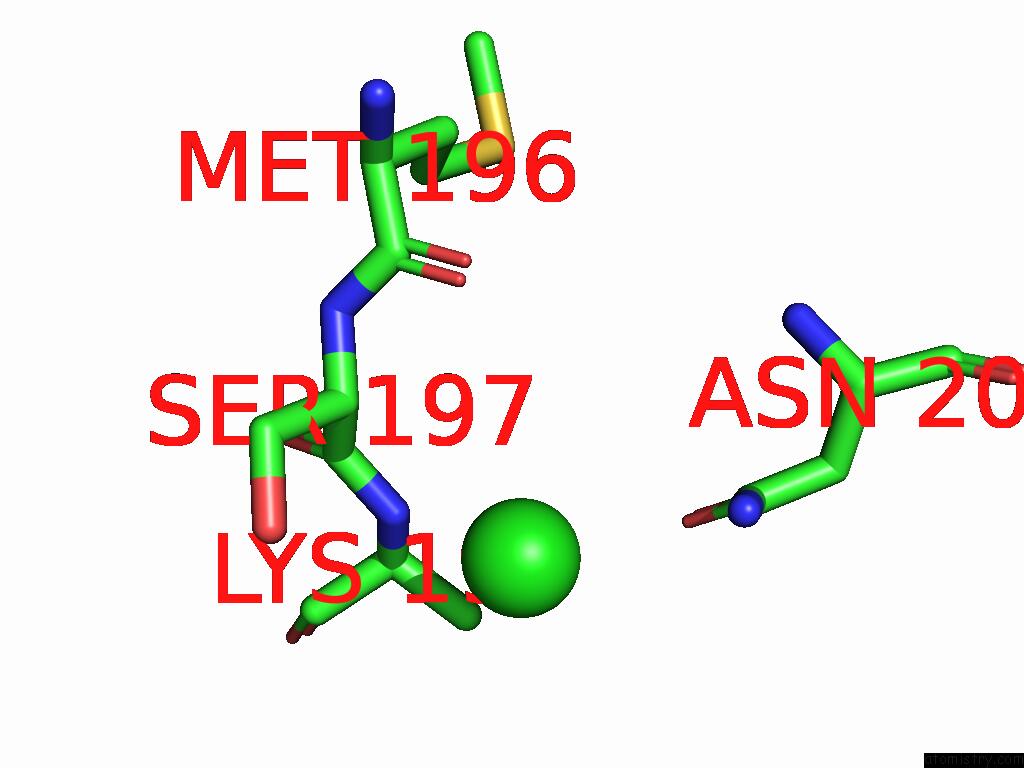

Chlorine binding site 1 out of 3 in the Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound)


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 1 of Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound) within 5.0Å range: probe atom residue distance (Å) B Occ A:Cl402 b:69.7 occ:1.00 N A:LYS198 3.4 55.6 1.0 ND2 A:ASN20 3.6 46.1 1.0 OG A:SER197 3.7 60.3 1.0 CA A:SER197 3.8 52.8 1.0 C A:SER197 4.1 58.8 1.0 CB A:LYS198 4.2 53.0 1.0 CB A:SER197 4.2 59.2 1.0 OD1 A:ASN20 4.3 54.3 1.0 CA A:LYS198 4.4 62.4 1.0 CG A:ASN20 4.4 51.0 1.0 O A:MET196 4.4 50.8 1.0 N A:SER197 4.9 47.5 1.0

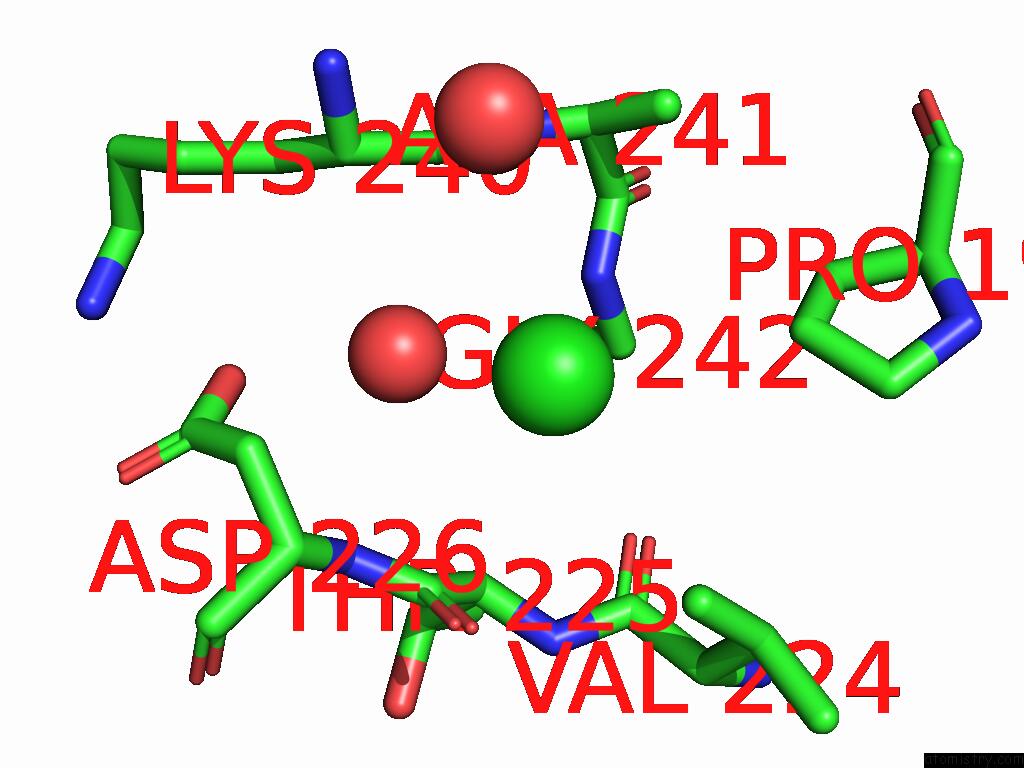

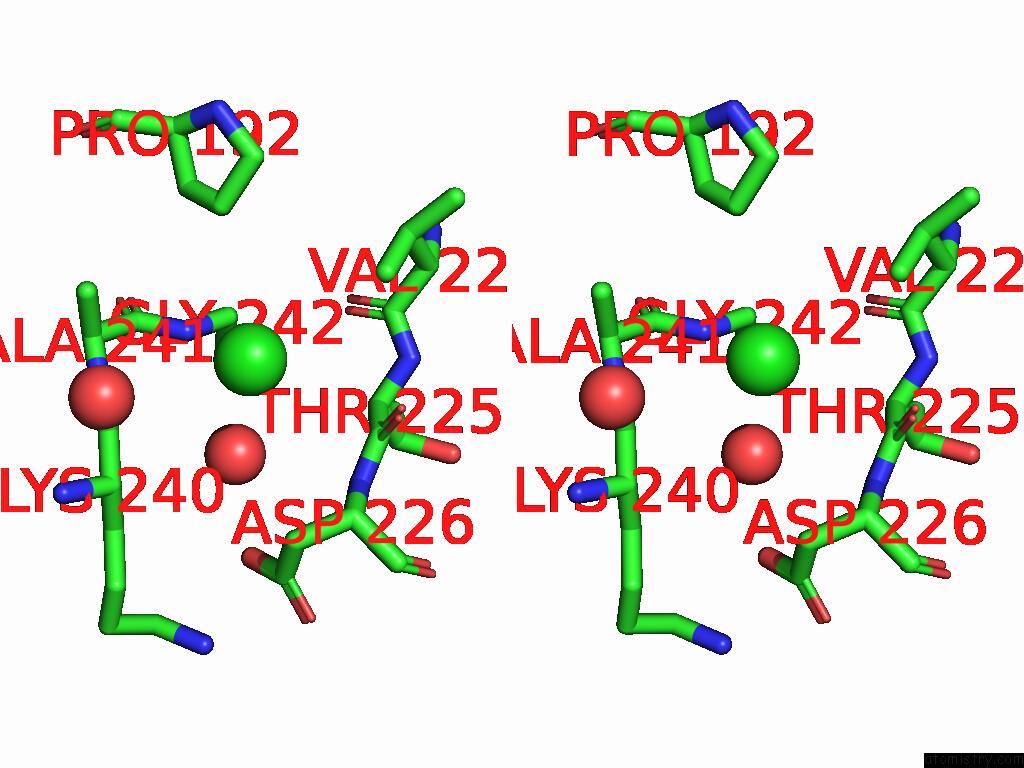

Chlorine binding site 2 out of 3 in the Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound)


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 2 of Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound) within 5.0Å range: probe atom residue distance (Å) B Occ A:Cl403 b:67.5 occ:1.00 N A:GLY242 3.4 37.1 1.0 O A:HOH517 3.5 41.2 1.0 O A:HOH559 3.9 52.1 1.0 O A:THR225 3.9 65.5 1.0 CA A:GLY242 4.0 36.2 1.0 CG1 A:VAL224 4.0 48.0 1.0 C A:THR225 4.1 51.4 1.0 N A:ALA241 4.1 39.0 1.0 CG A:PRO192 4.2 39.6 1.0 C A:ALA241 4.4 37.1 1.0 N A:ASP226 4.4 47.2 1.0 CB A:ALA241 4.5 40.5 1.0 CA A:ALA241 4.5 38.3 1.0 CA A:THR225 4.6 41.4 1.0 CB A:ASP226 4.6 47.9 1.0 CA A:ASP226 4.6 50.2 1.0 C A:LYS240 4.6 39.5 1.0 O A:VAL224 4.8 42.0 1.0 CA A:LYS240 4.9 38.0 1.0 N A:THR225 4.9 40.2 1.0 C A:VAL224 5.0 38.0 1.0

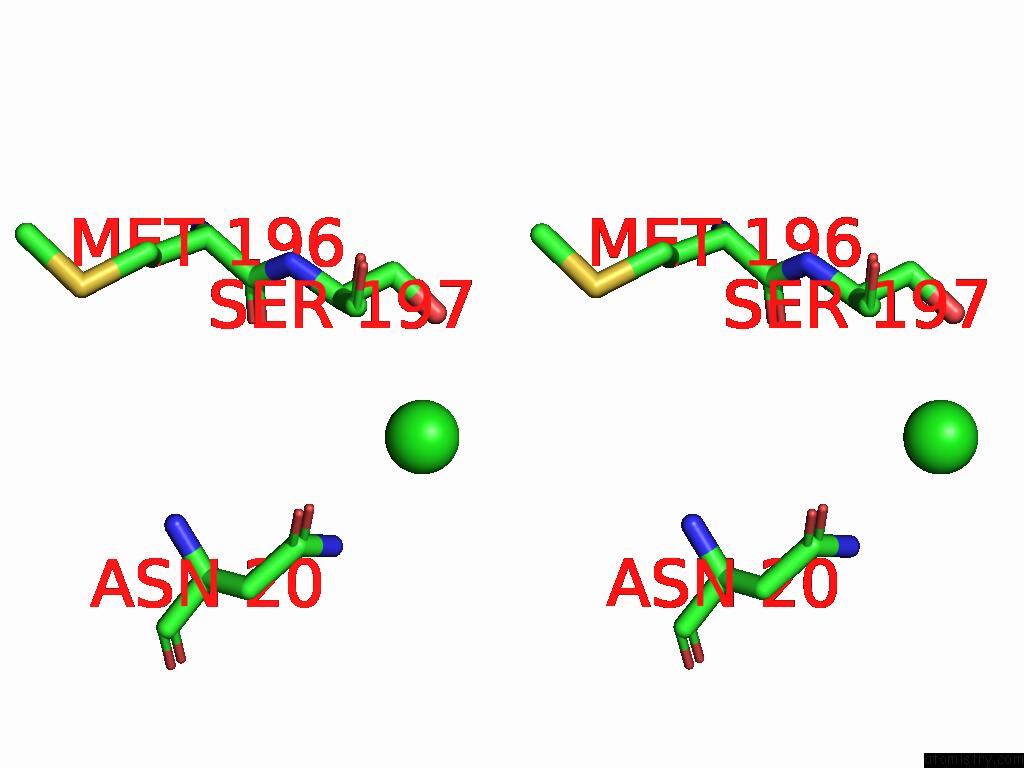

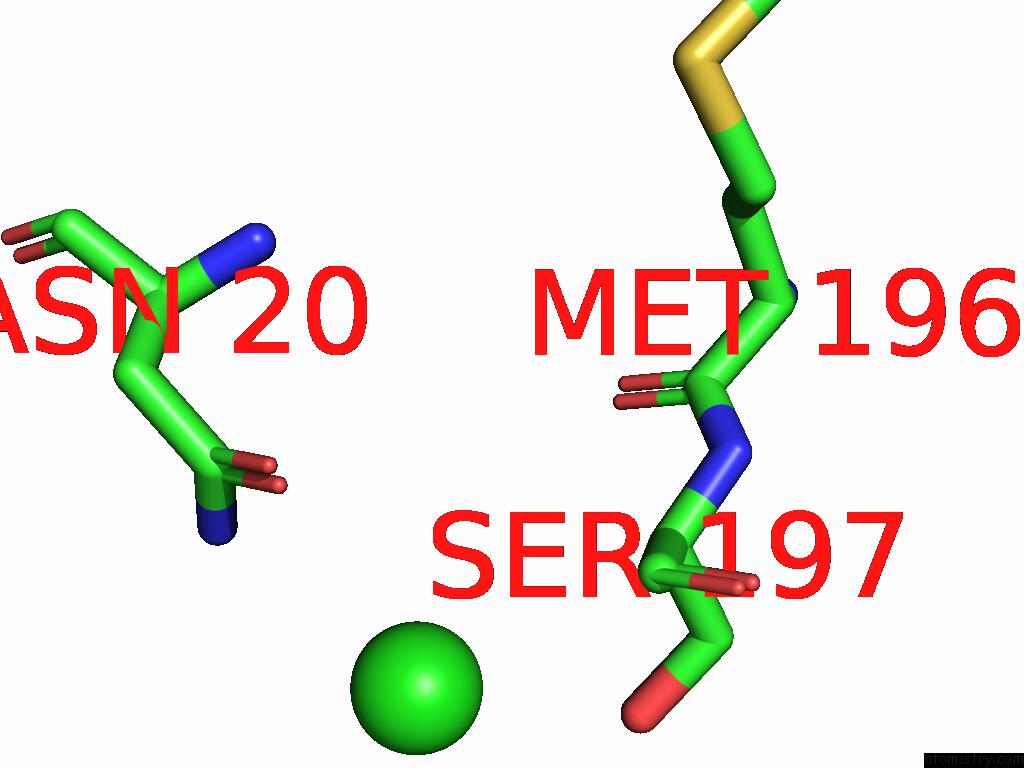

Chlorine binding site 3 out of 3 in the Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound)


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 3 of Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound) within 5.0Å range: probe atom residue distance (Å) B Occ B:Cl402 b:79.0 occ:1.00 OG B:SER197 3.0 81.9 1.0 ND2 B:ASN20 3.5 67.3 1.0 CA B:SER197 4.0 73.0 1.0 CB B:SER197 4.0 74.5 1.0 OD1 B:ASN20 4.3 65.0 1.0 CG B:ASN20 4.3 60.7 1.0 C B:SER197 4.4 77.0 1.0 O B:MET196 4.9 62.7 1.0

S.Seibold, S.Lovell, K.P.Battaile. Crystal Structure of Tryptophanyl-Trna Synthetase From Klebsiella Aerogenes (Tryptophan Bound) To Be Published.
