Chlorine in PDB 9hhy: Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid

Enzymatic activity of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid

All present enzymatic activity of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid:
4.1.3.30;

Protein crystallography data

The structure of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid, PDB code: 9hhy was solved by W.Stuart, M.Isupov, N.J.Harmer, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 59.24 / 2.33
Space group P 1 21 1
Cell size a, b, c (Å), α, β, γ (°) 93.785, 115.55, 195.241, 90, 92.34, 90
R / Rfree (%) 21.4 / 26.5

Other elements in 9hhy:

The structure of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid also contains other interesting chemical elements:

Magnesium (Mg) 12 atoms

Chlorine Binding Sites:

Pages:

>>> Page 1 <<< Page 2, Binding sites: 11 - 13;

Binding sites:

The binding sites of Chlorine atom in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid (pdb code 9hhy). This binding sites where shown within 5.0 Angstroms radius around Chlorine atom.
In total 13 binding sites of Chlorine where determined in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid, PDB code: 9hhy:
Jump to Chlorine binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10;

Chlorine binding site 1 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

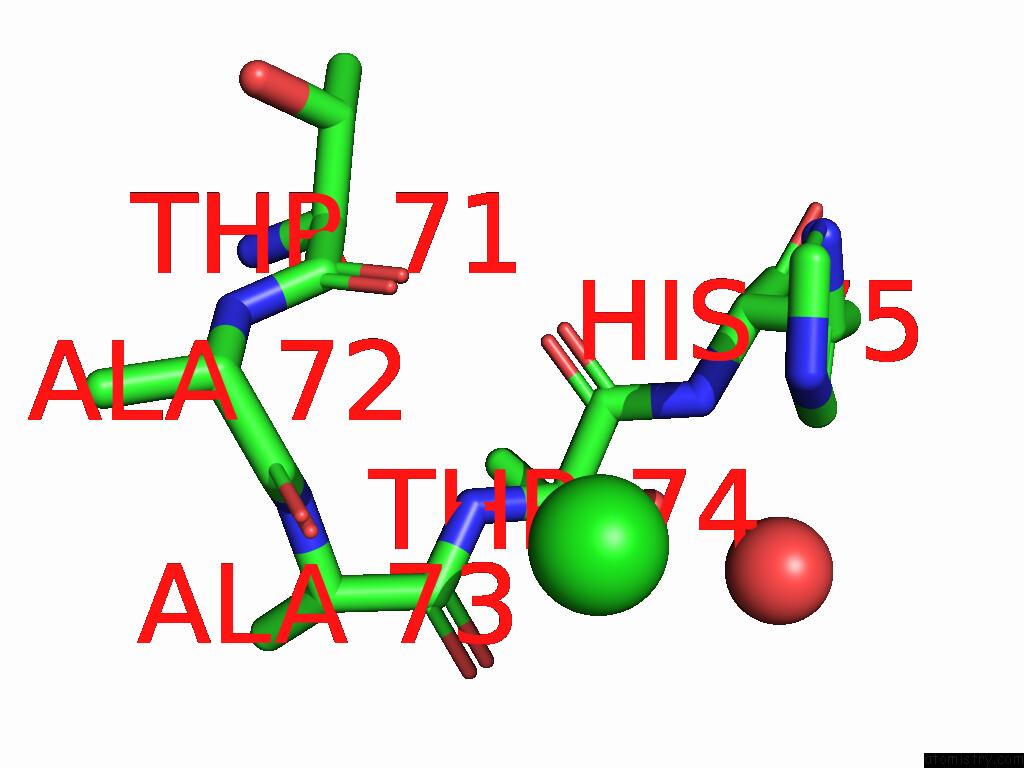

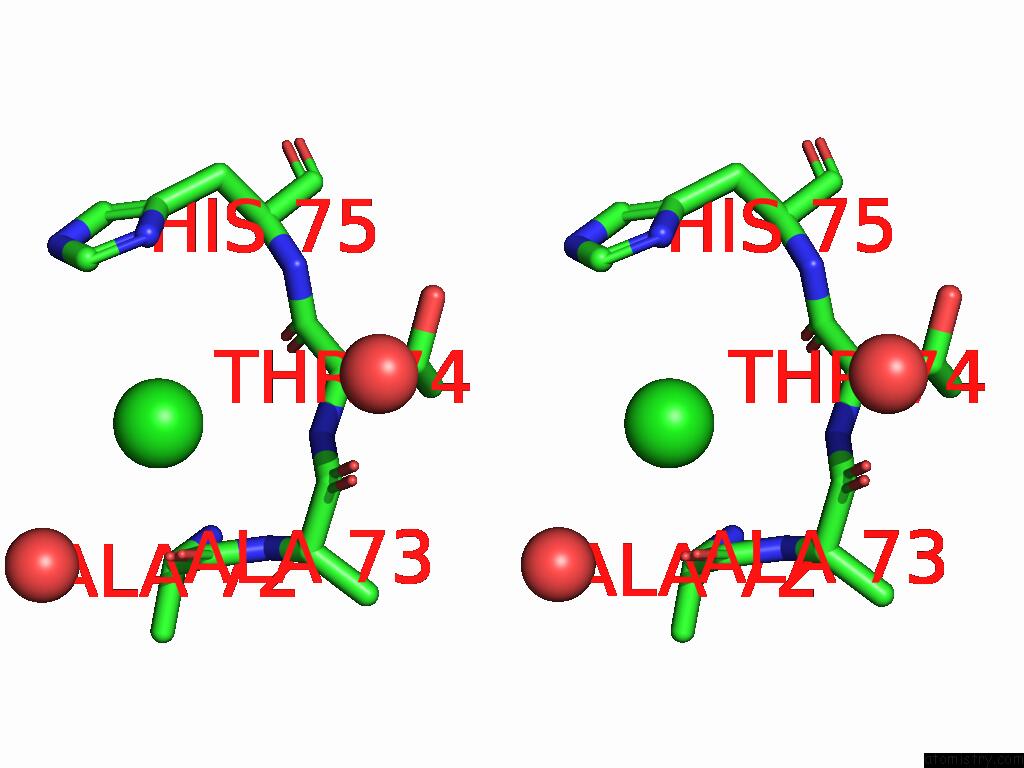

Chlorine binding site 1 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 1 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Cl305

b:73.5
occ:1.00
 O A:ALA72 3.6 43.1 1.0
CE1 A:HIS75 3.8 63.9 1.0
ND1 A:HIS75 4.0 56.5 1.0
O A:ALA73 4.0 39.1 1.0
C A:ALA73 4.1 38.4 1.0
N A:THR74 4.3 31.5 1.0
C A:ALA72 4.4 40.8 1.0
O A:HOH443 4.5 37.9 1.0
O A:HOH408 4.5 42.6 1.0
CA A:ALA73 4.6 37.3 1.0
CA A:THR74 4.6 41.6 1.0
N A:ALA73 4.8 38.3 1.0
NE2 A:HIS75 4.9 63.3 1.0
C A:THR74 5.0 44.9 1.0

Chlorine binding site 2 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy
Chlorine binding site 2 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 2 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Cl307

b:69.1
occ:1.00
 NE2 B:HIS75 3.4 64.6 1.0
CD2 B:HIS75 3.4 59.8 1.0
O B:ALA72 3.7 45.9 1.0
C B:ALA73 4.2 33.3 1.0
N B:THR74 4.2 28.4 1.0
O B:ALA73 4.3 43.5 1.0
CE1 B:HIS75 4.4 61.0 1.0
CG B:HIS75 4.4 65.4 1.0
CA B:THR74 4.5 32.4 1.0
C B:ALA72 4.5 47.8 1.0
C B:THR74 4.6 39.2 1.0
N B:HIS75 4.7 49.0 1.0
CA B:ALA73 4.8 42.9 1.0
O B:HOH433 4.8 55.8 1.0
O B:THR71 4.9 46.1 1.0
ND1 B:HIS75 4.9 55.5 1.0
N B:ALA73 4.9 41.6 1.0

Chlorine binding site 3 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

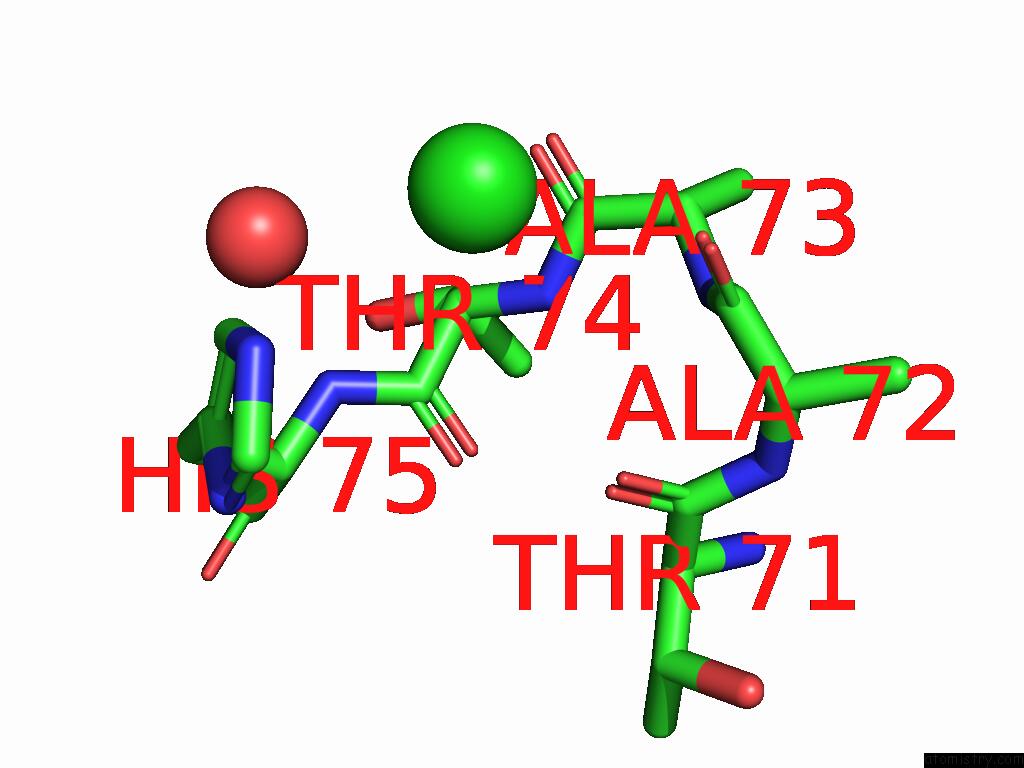

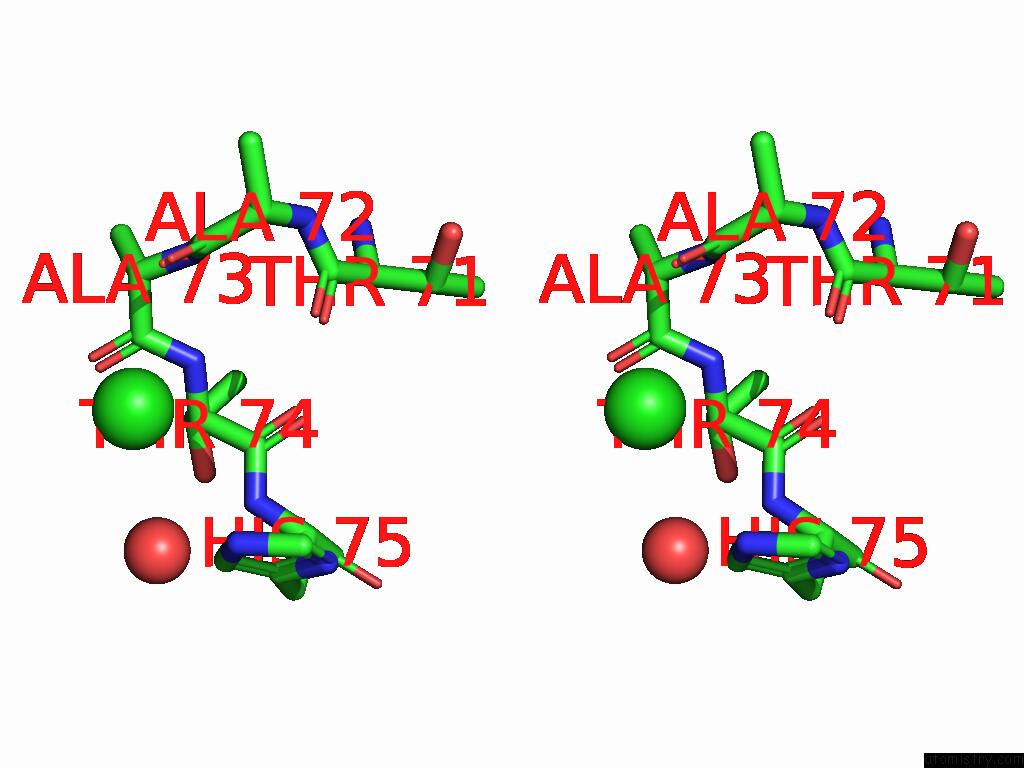

Chlorine binding site 3 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 3 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Cl304

b:80.1
occ:1.00
 O C:ALA72 3.3 57.4 1.0
NE2 C:HIS75 3.8 62.5 1.0
C C:ALA73 3.9 38.1 1.0
CD2 C:HIS75 3.9 67.8 1.0
O C:ALA73 3.9 44.0 1.0
N C:THR74 4.0 25.7 1.0
C C:ALA72 4.1 40.1 1.0
CA C:ALA73 4.3 29.3 1.0
CA C:THR74 4.4 40.3 1.0
N C:ALA73 4.5 40.4 1.0
O C:HOH483 4.7 51.2 1.0
C C:THR74 4.7 37.8 1.0
CE1 C:HIS75 4.8 66.0 1.0
O C:HOH409 4.8 53.6 1.0
O C:THR71 4.8 44.9 1.0
CG C:HIS75 4.9 62.8 1.0
N C:HIS75 5.0 45.9 1.0

Chlorine binding site 4 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

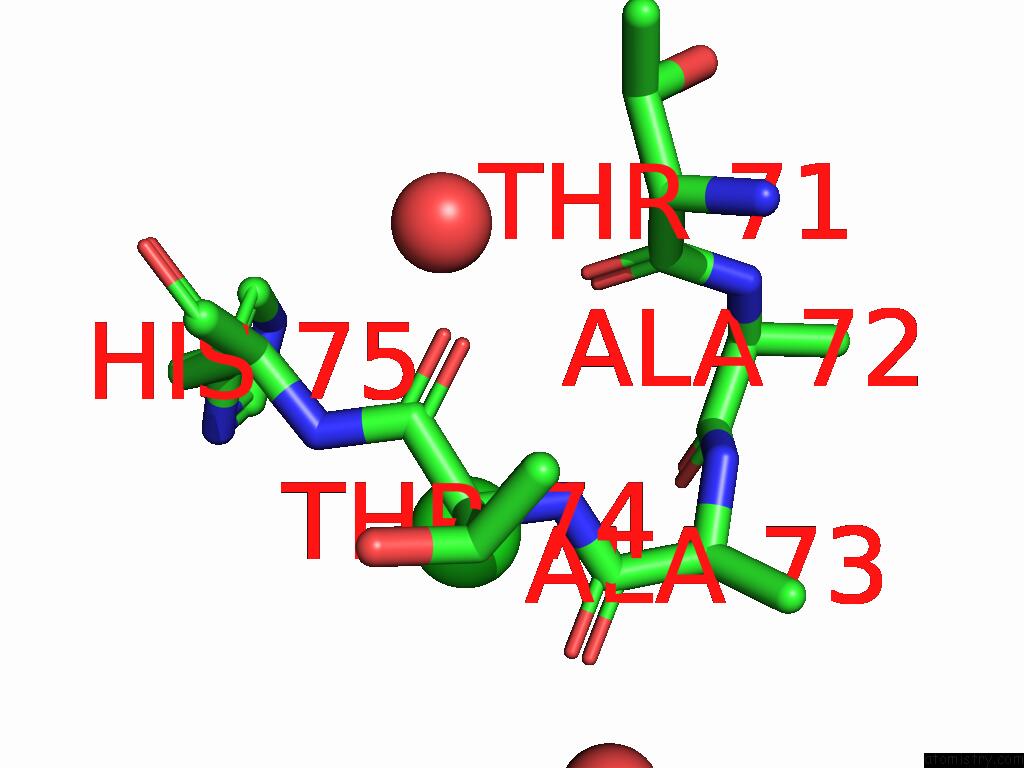

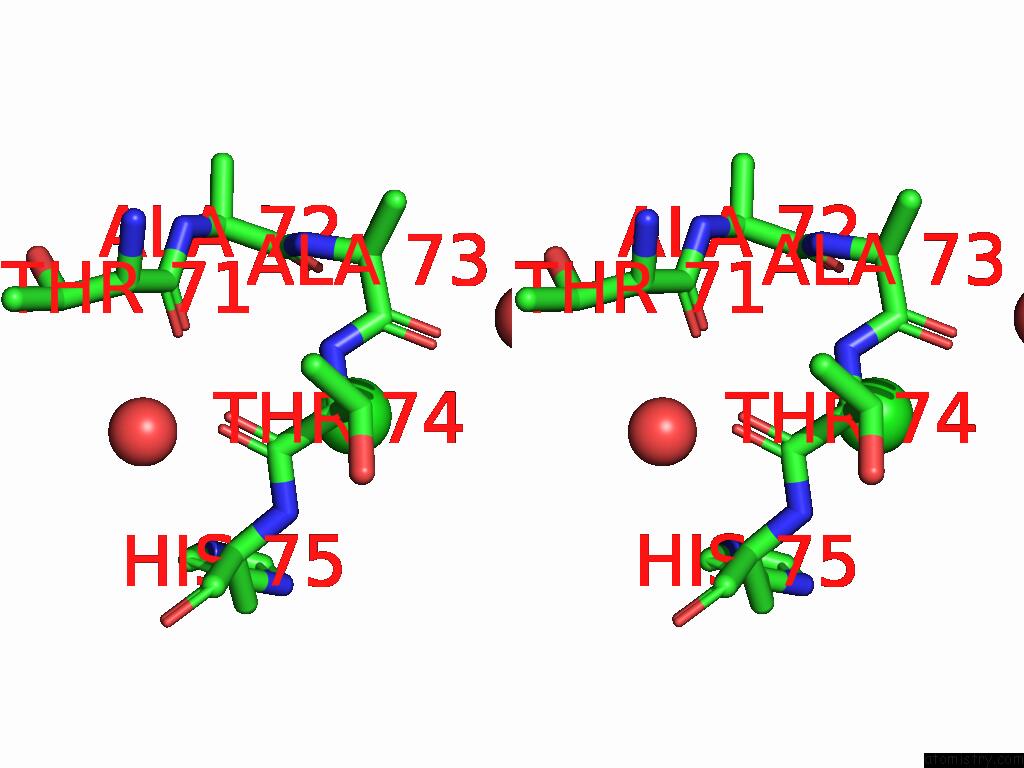

Chlorine binding site 4 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 4 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Cl310

b:57.9
occ:1.00
 O D:ALA72 3.6 46.0 1.0
C D:ALA73 4.0 48.4 1.0
N D:THR74 4.1 36.2 1.0
O D:ALA73 4.1 44.5 1.0
CE1 D:HIS75 4.1 72.4 1.0
ND1 D:HIS75 4.2 59.7 1.0
C D:ALA72 4.3 54.3 1.0
CA D:THR74 4.4 44.9 1.0
CA D:ALA73 4.6 39.7 1.0
C D:THR74 4.6 48.9 1.0
NE2 D:HIS75 4.7 64.0 1.0
CG D:HIS75 4.7 60.2 1.0
N D:ALA73 4.7 44.7 1.0
N D:HIS75 4.8 56.9 1.0
O D:THR71 4.8 38.5 1.0
O D:HOH439 4.8 43.4 1.0
O D:HOH415 5.0 36.0 1.0

Chlorine binding site 5 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

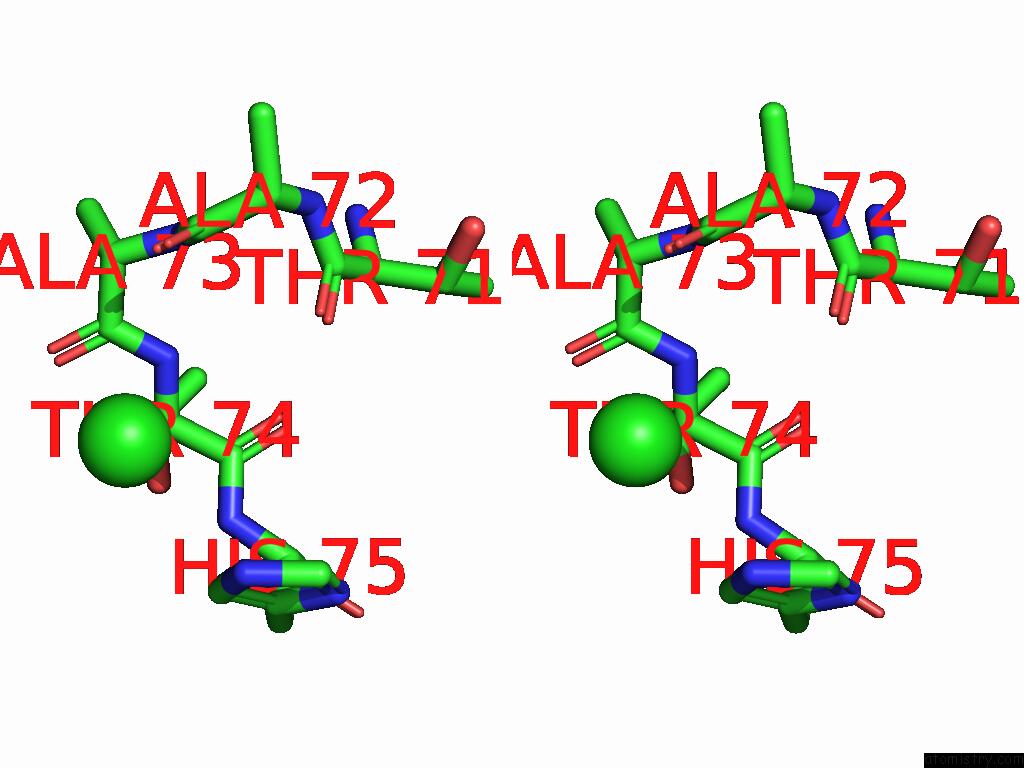

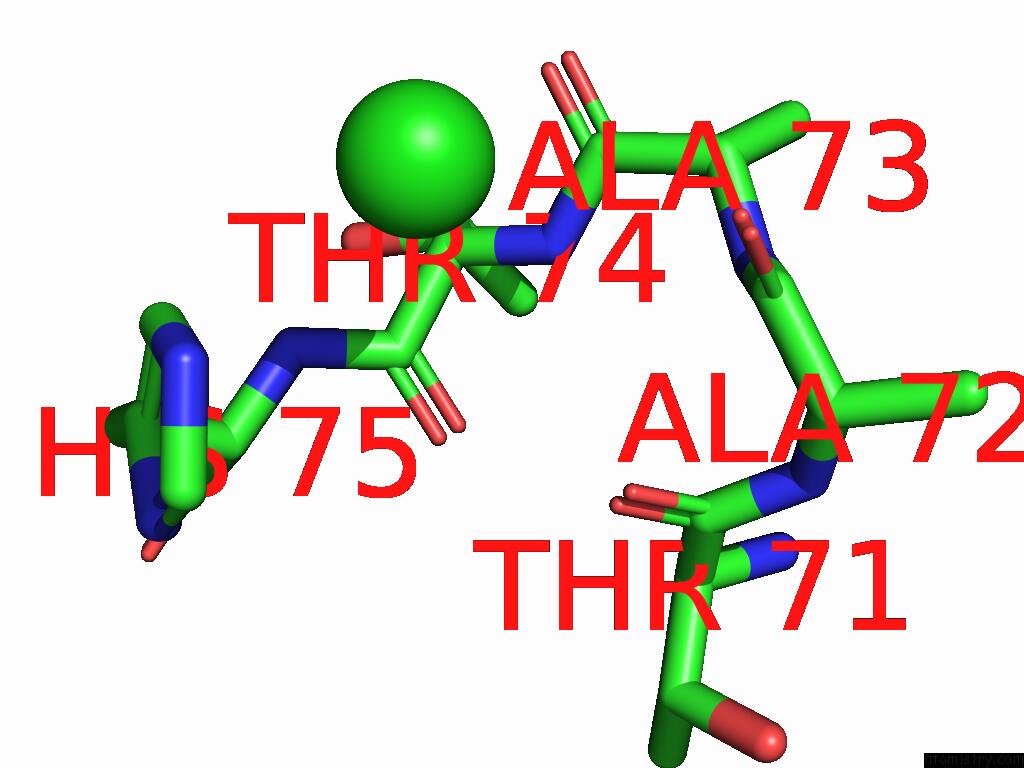

Chlorine binding site 5 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 5 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
E:Cl304

b:82.6
occ:1.00
 NE2 E:HIS75 3.4 109.2 1.0
CD2 E:HIS75 3.4 91.0 1.0
O E:ALA72 3.8 74.1 1.0
C E:ALA73 4.0 104.4 1.0
O E:ALA73 4.0 83.4 1.0
N E:THR74 4.1 66.0 1.0
CA E:THR74 4.3 57.3 1.0
CE1 E:HIS75 4.4 94.1 1.0
CG E:HIS75 4.5 89.8 1.0
C E:THR74 4.5 59.9 1.0
C E:ALA72 4.5 71.8 1.0
N E:HIS75 4.6 68.3 1.0
CA E:ALA73 4.6 86.8 1.0
N E:ALA73 4.8 93.3 1.0
O E:THR71 4.9 58.2 1.0
ND1 E:HIS75 5.0 78.9 1.0

Chlorine binding site 6 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

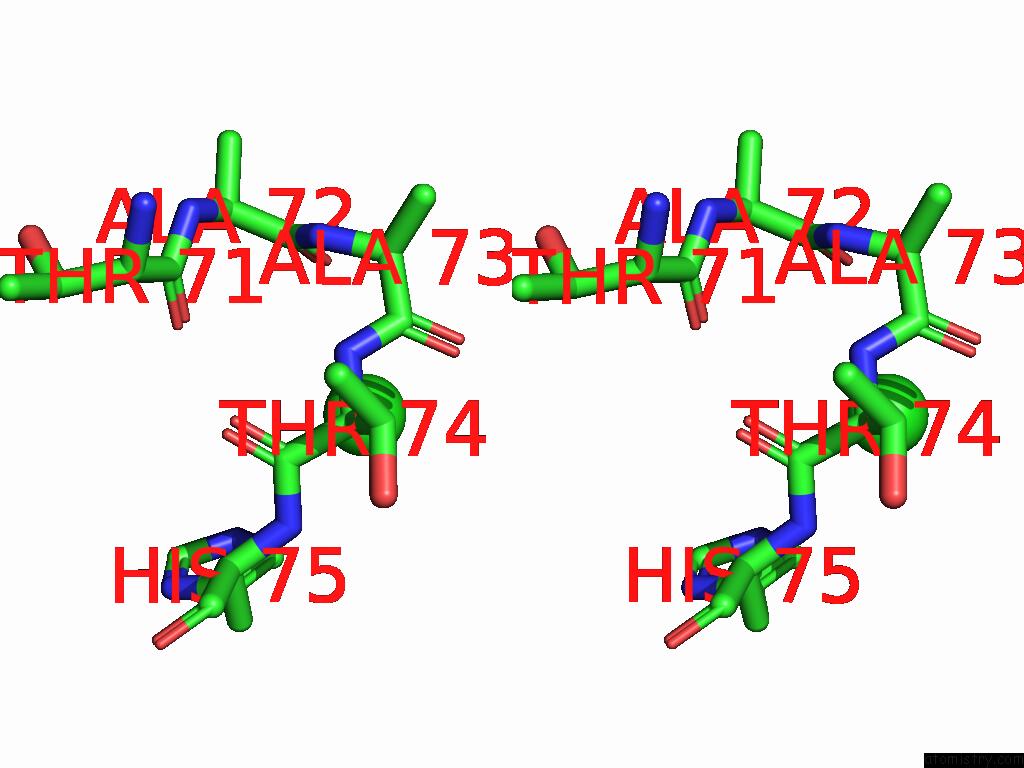

Chlorine binding site 6 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 6 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
F:Cl306

b:71.3
occ:1.00
 O F:ALA72 3.5 95.8 1.0
CD2 F:HIS75 3.7 65.1 1.0
NE2 F:HIS75 3.9 98.1 1.0
C F:ALA73 3.9 55.6 1.0
O F:ALA73 4.0 49.8 1.0
N F:THR74 4.1 48.5 1.0
C F:ALA72 4.3 67.0 1.0
CA F:THR74 4.4 51.1 1.0
CA F:ALA73 4.5 62.0 1.0
N F:ALA73 4.7 66.1 1.0
C F:THR74 4.7 55.1 1.0
CG F:HIS75 4.8 109.9 1.0
N F:HIS75 4.9 50.3 1.0
O F:THR71 5.0 72.8 1.0

Chlorine binding site 7 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

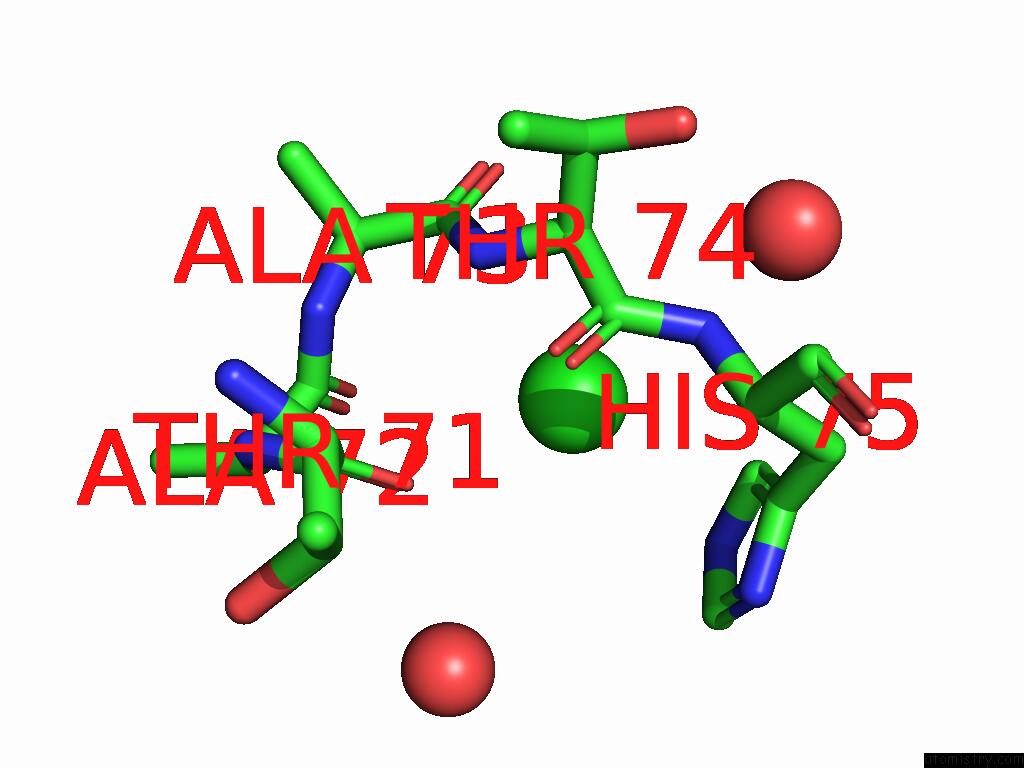

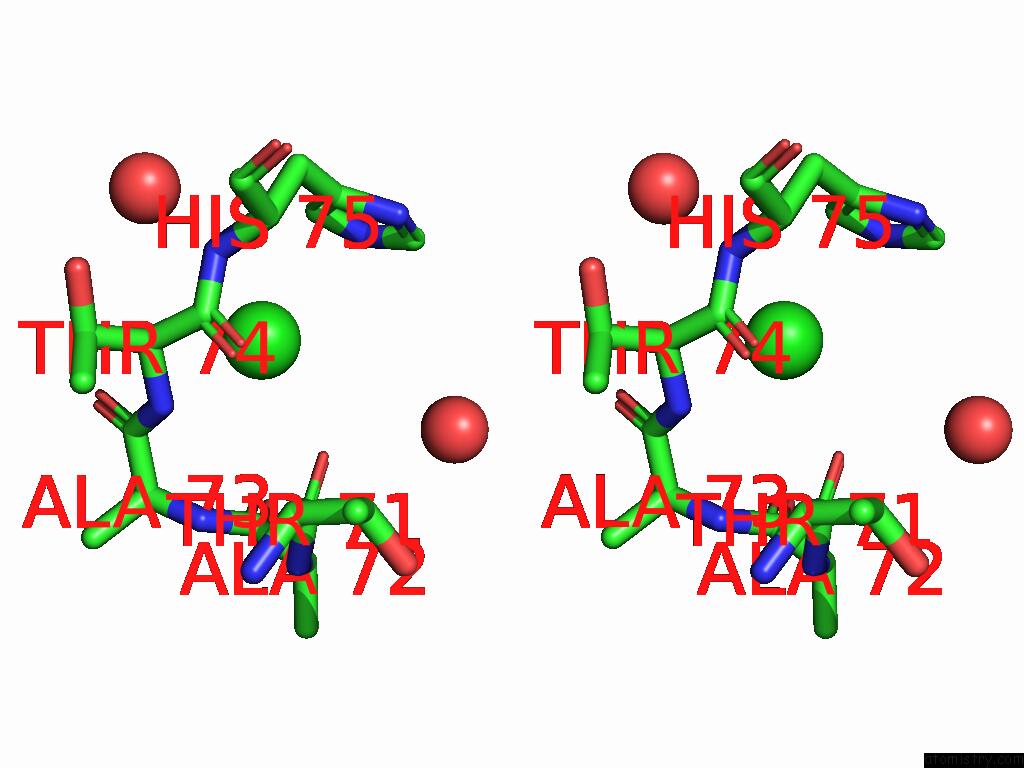

Chlorine binding site 7 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 7 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
G:Cl308

b:87.1
occ:1.00
 NE2 G:HIS75 3.4 87.6 1.0
CD2 G:HIS75 3.4 92.2 1.0
O G:ALA72 3.7 68.6 1.0
C G:ALA73 3.9 51.1 1.0
N G:THR74 3.9 56.5 1.0
O G:ALA73 4.0 43.0 1.0
CA G:THR74 4.2 42.9 1.0
CE1 G:HIS75 4.3 79.9 1.0
C G:THR74 4.3 55.1 1.0
CG G:HIS75 4.4 105.7 1.0
C G:ALA72 4.4 46.2 1.0
N G:HIS75 4.5 56.5 1.0
CA G:ALA73 4.5 51.1 1.0
O G:HOH431 4.7 63.1 1.0
N G:ALA73 4.7 60.6 1.0
O G:THR71 4.8 61.0 1.0
ND1 G:HIS75 4.8 85.0 1.0
O I:HOH480 4.9 51.8 1.0
O G:THR74 4.9 56.1 1.0

Chlorine binding site 8 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

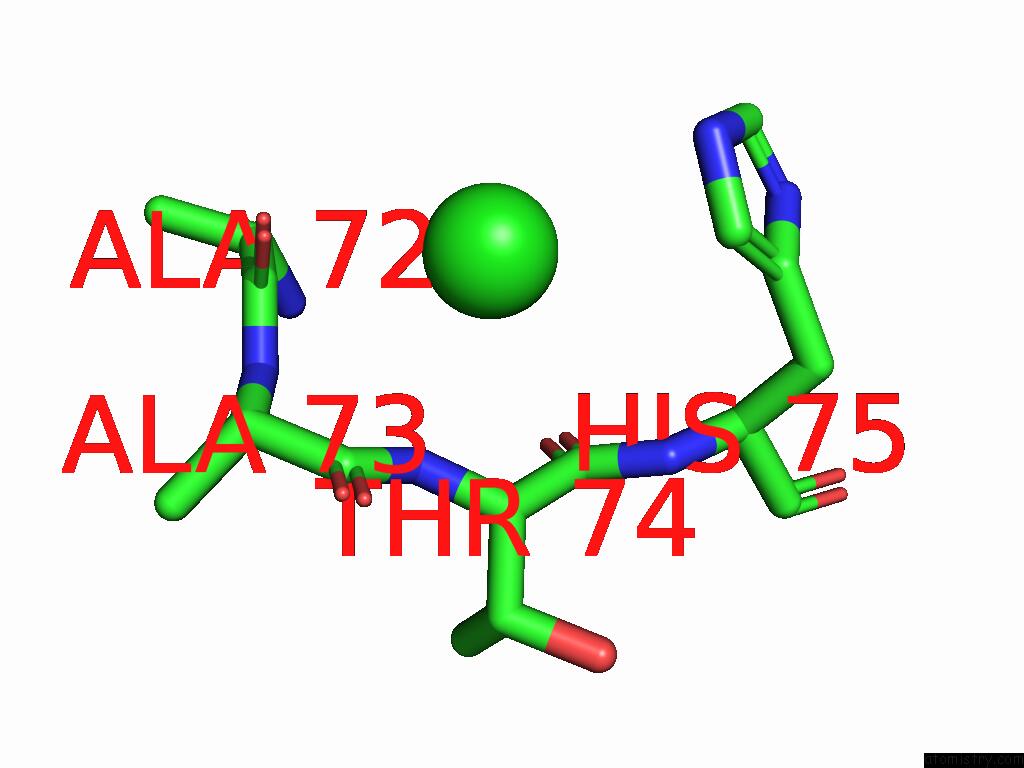

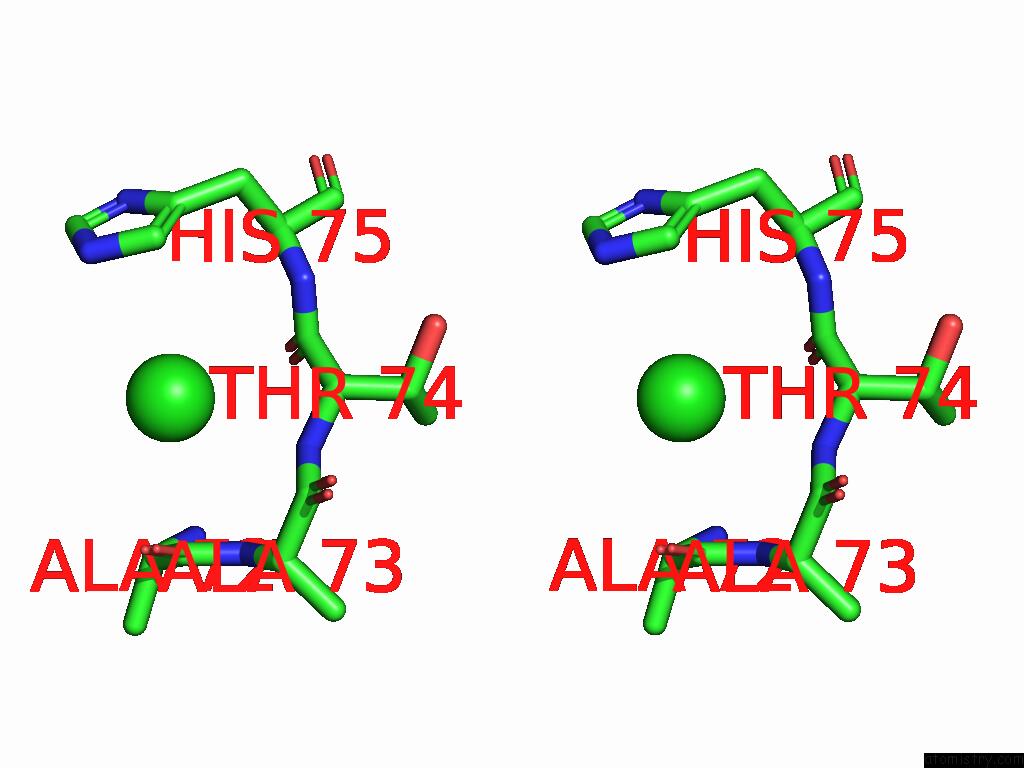

Chlorine binding site 8 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 8 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
H:Cl308

b:72.4
occ:1.00
 CD2 H:HIS75 3.6 71.7 1.0
O H:ALA73 3.7 56.5 1.0
C H:ALA73 3.8 54.8 1.0
NE2 H:HIS75 3.8 78.8 1.0
O H:ALA72 3.9 66.8 1.0
N H:THR74 4.0 50.7 1.0
CA H:THR74 4.2 55.2 1.0
C H:THR74 4.5 50.3 1.0
CA H:ALA73 4.5 45.9 1.0
N H:HIS75 4.6 61.8 1.0
C H:ALA72 4.7 67.5 1.0
CG H:HIS75 4.7 60.6 1.0
N H:ALA73 4.9 64.6 1.0

Chlorine binding site 9 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

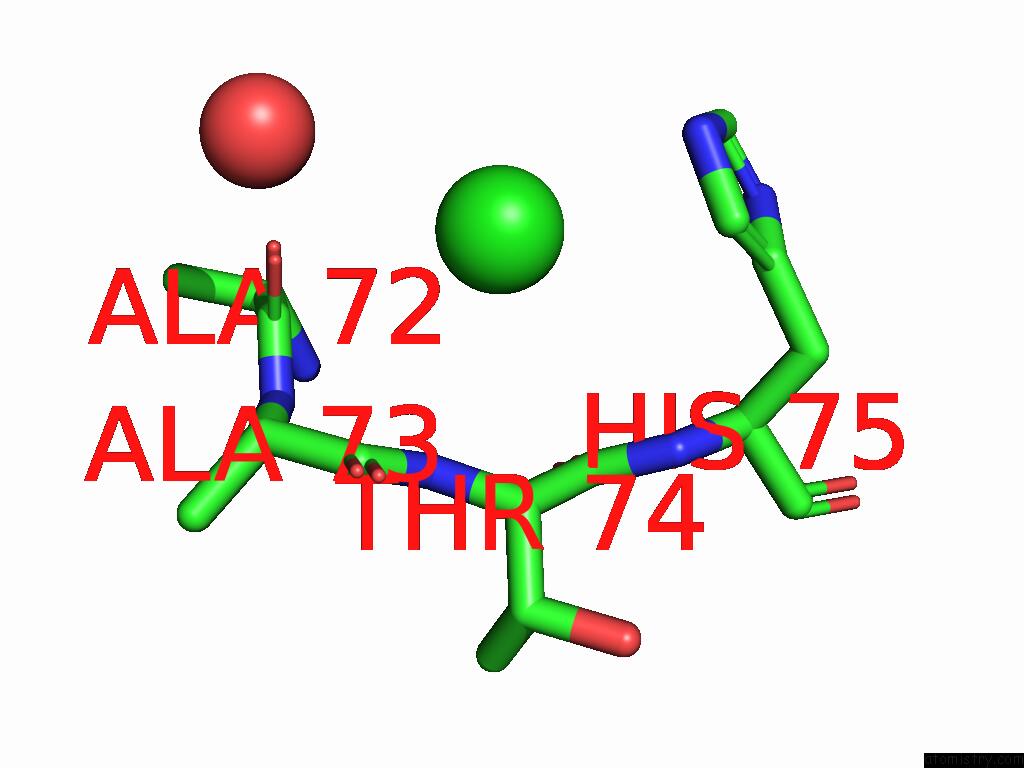

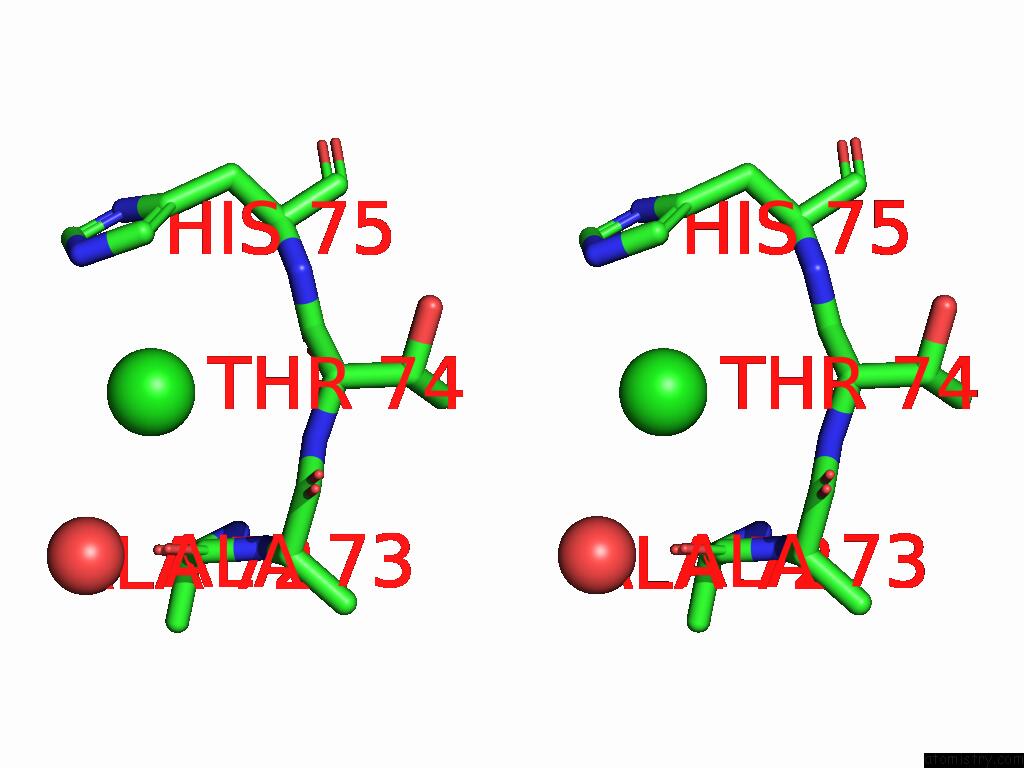

Chlorine binding site 9 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 9 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
I:Cl304

b:76.5
occ:1.00
 CD2 I:HIS75 3.4 78.2 1.0
NE2 I:HIS75 3.5 101.4 1.0
O G:HOH416 3.6 53.6 1.0
O I:ALA73 3.8 61.0 1.0
C I:ALA73 3.9 52.2 1.0
N I:THR74 4.0 51.4 1.0
O I:ALA72 4.0 53.4 1.0
CA I:THR74 4.1 44.9 1.0
C I:THR74 4.4 47.9 1.0
CG I:HIS75 4.4 107.2 1.0
N I:HIS75 4.5 51.5 1.0
CE1 I:HIS75 4.5 82.8 1.0
CA I:ALA73 4.6 51.7 1.0
C I:ALA72 4.7 47.8 1.0
N I:ALA73 5.0 40.4 1.0
ND1 I:HIS75 5.0 103.1 1.0

Chlorine binding site 10 out of 13 in 9hhy

Go back to Chlorine Binding Sites List in 9hhy

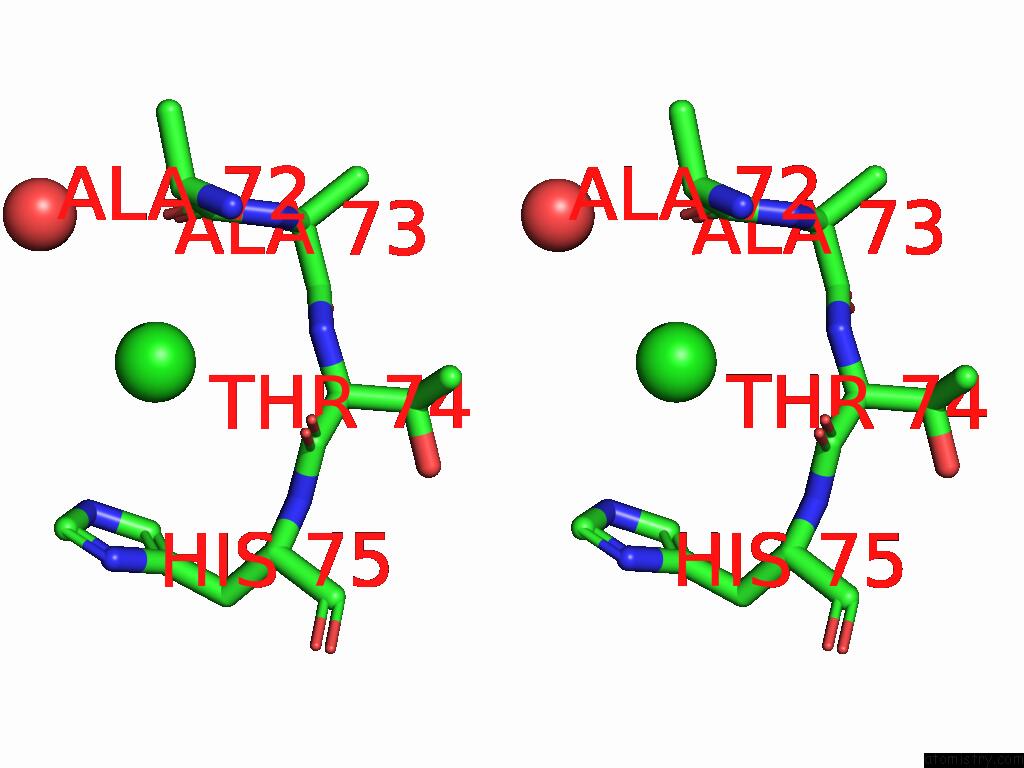

Chlorine binding site 10 out of 13 in the Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid


Mono view


Stereo pair view

A full contact list of Chlorine with other atoms in the Cl binding site number 10 of Crystal Structure of the Coxiella Burnetii 2-Methylisocitrate Lyase Bound to Inhibitor Isocitric Acid within 5.0Å range:
probe atom residue distance (Å) B Occ
J:Cl305

b:66.4
occ:1.00
 O J:ALA72 3.6 45.5 1.0
NE2 J:HIS75 3.7 79.4 1.0
CD2 J:HIS75 3.8 57.7 1.0
C J:ALA73 4.0 43.1 1.0
O J:ALA73 4.0 51.0 1.0
N J:THR74 4.1 40.1 1.0
O J:HOH443 4.4 47.4 1.0
CA J:THR74 4.4 39.5 1.0
C J:ALA72 4.5 38.8 1.0
CE1 J:HIS75 4.6 74.3 1.0
CA J:ALA73 4.6 40.8 1.0
C J:THR74 4.7 39.6 1.0
CG J:HIS75 4.7 48.7 1.0
N J:HIS75 4.8 50.6 1.0
N J:ALA73 4.8 40.5 1.0

Reference:

W.S.Stuart, C.H.Jenkins, P.M.Ireland, M.N.Isupov, I.H.Norville, N.J.Harmer. Structure and Catalytic Mechanism of Methylisocitrate Lyase, A Potential Drug Target Against Coxiella Burnetii. J.Biol.Chem. V. 301 08517 2025.
ISSN: ESSN 1083-351X
PubMed: 40250561
DOI: 10.1016/J.JBC.2025.108517
